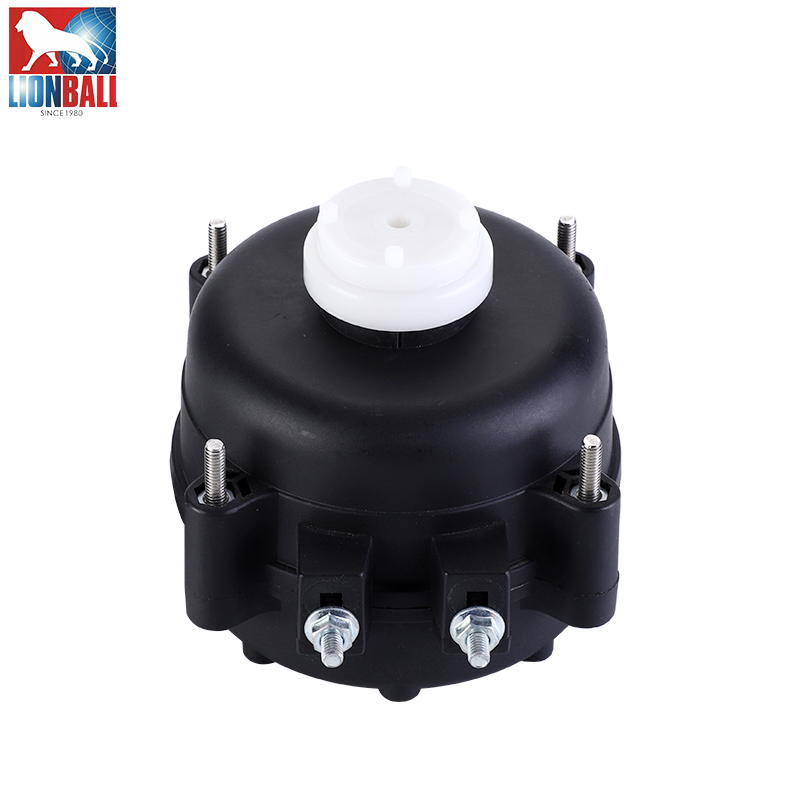

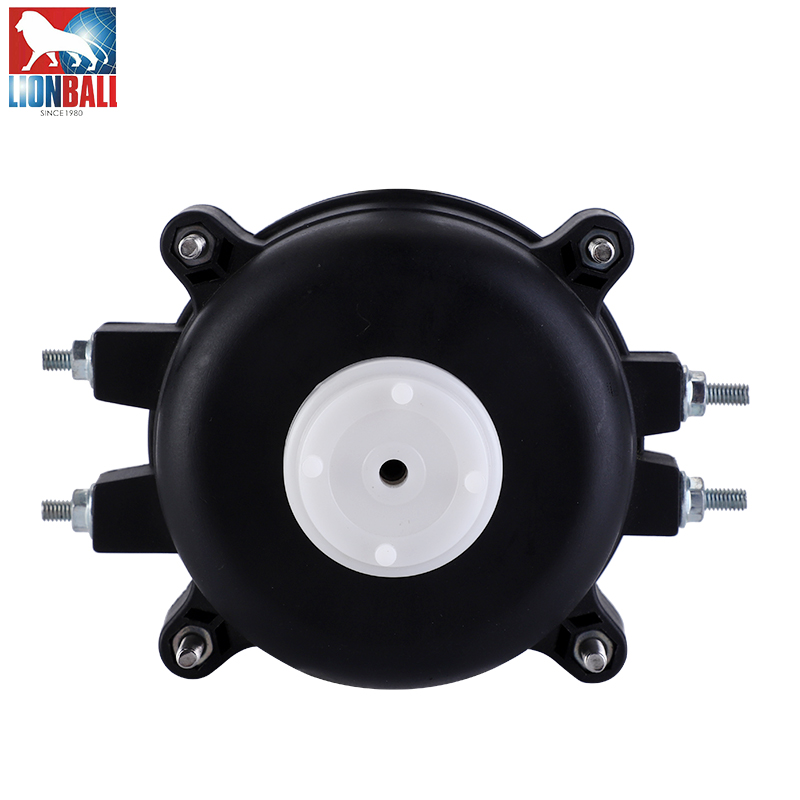

Electronically Commutated Motor 5-38W
This Electronically Commutated Motor (ECM) features a special wide temperature range lubrication system. Mounting hardware and a water shield are included.
Technical Specifications
Overview
High-Efficiency ECM Motors
These electronically commutated (ECM) motors are designed for energy-efficient operation in refrigeration applications, such as evaporators and condensers. Featuring a fully enclosed or external electronic control, they serve as a direct, high-performance replacement for traditional shaded pole and PSC induction motors. With an efficiency rate of up to 70%, compared to just 20% for shaded pole alternatives, these motors provide significant energy savings.
Technical Specifications
- Model
- ECM08A110
- Voltage
- 110 V
- Frequency
- 50/60 Hz
- Rated Current
- 0.2 A
- Operating Speed
- 1550 rpm
- Input/Output Power
- 9/6 W
Features
Key Features
Energy SavingWater Shield IncludedMounting Hardware IncludedWide Temperature Range Lubrication
Performance Data

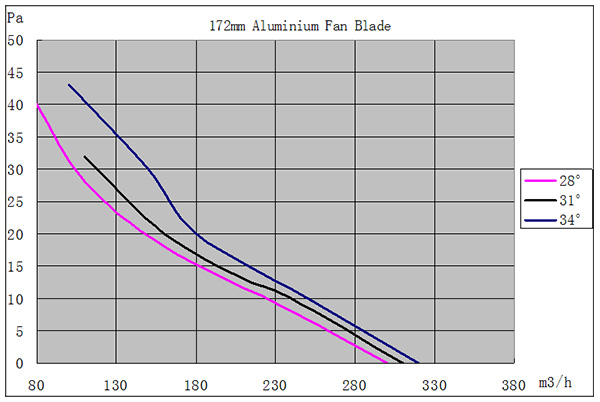

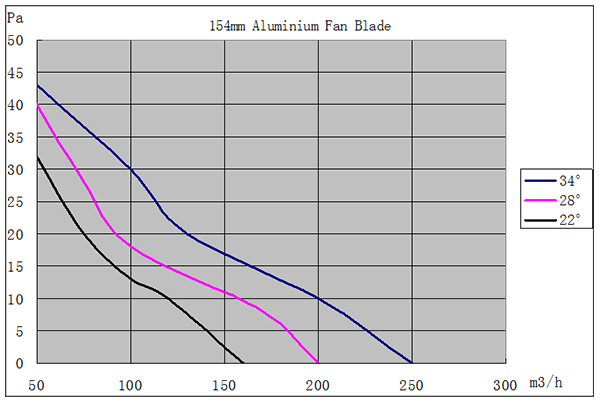

Airflow Performance (1550 rpm)
| Impeller Diameter (mm) | Blade Angle (°) | Input (W) |
|---|---|---|
| 154 | 22 | 4 |
| 154 | 28 | 4.8 |
| 154 | 34 | 6.8 |
| 172 | 28 | 8 |
