Electromagnetic Brake Three-Phase AC Motor
This three-phase AC motor incorporates an electromagnetic brake, providing reliable stopping power when de-energized. It is suitable for applications requiring precise positioning, holding, or emergency stops.
Technical Specifications
Product Overview

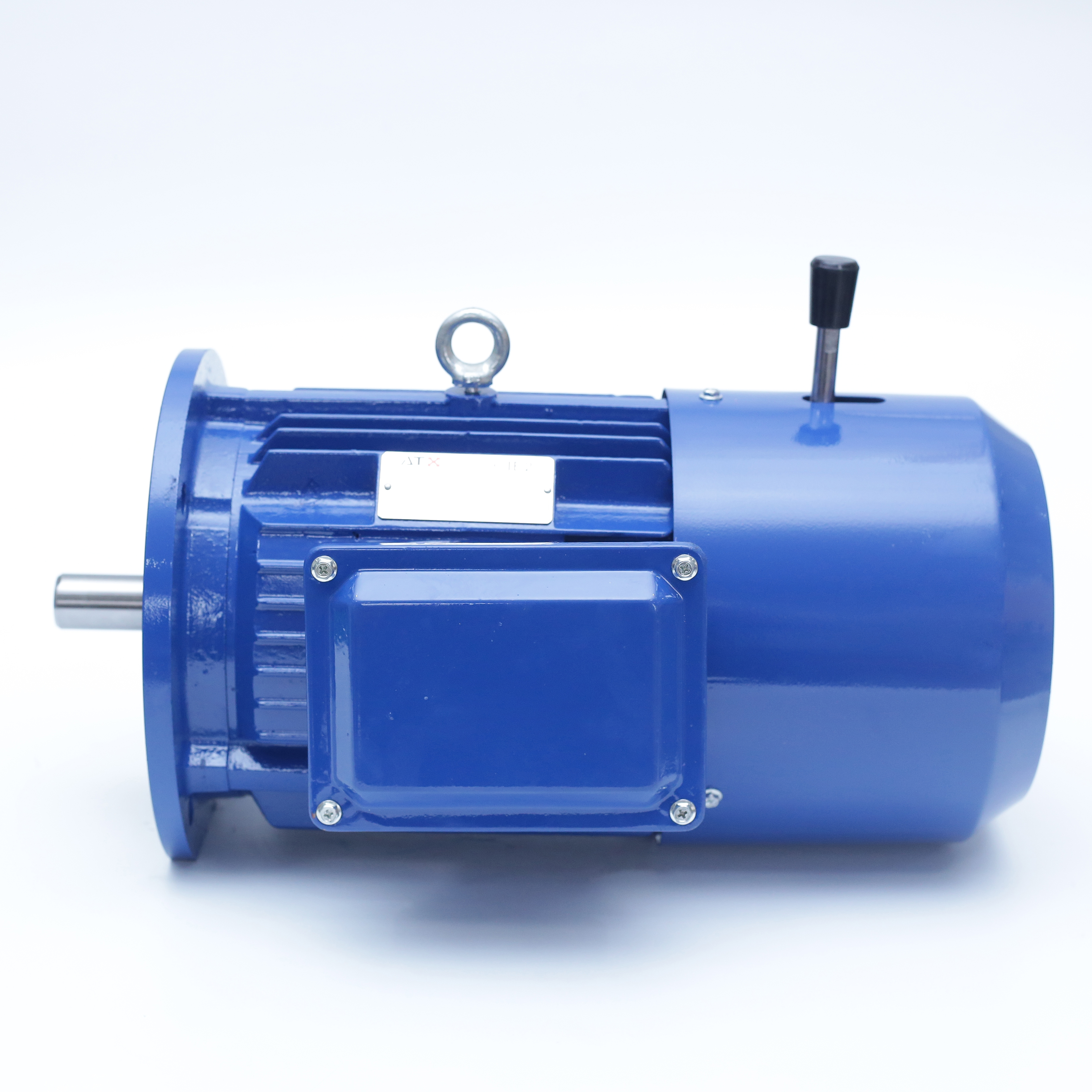

High-Precision Y2EJ Series Brake Motor
The Y2EJ series is a fully enclosed, fan-cooled three-phase asynchronous induction motor integrated with a high-reliability DC disc electromagnetic brake. Designed for industrial applications requiring rapid, accurate positioning and emergency stopping, these motors feature a manual release for enhanced control. Built for durability, the motor design supports continuous operation in diverse driving mechanisms and machinery.
Technical Specifications
- Duty Cycle
- S1 (Continuous Duty)
- IP Rating
- IP55
- Standards Compliance
- IEC/EN60034-1CEIE2
- Operating Temperature
- -20 to +45 °C
Braking System
Brake Rectifier Specifications
| Motor Power | Input Voltage | Output Voltage |
|---|---|---|
| Up to 3kW | AC 220V | DC 99V |
| 4kW and upwards | AC 380V | DC 170V |
- Brake Type
- DC electromagnetic disc brake
Applications
Industry Applications
- Hoisting and cranes
- Machine tools
- Automated machinery
- Precision positioning systems
