Electrical Distribution Metal Wall Panel
This metal wall panel distributes electrical supply within a building. Its interior is pre-fitted with a clip tray or DIN rail for mounting miniature circuit breakers and other devices.
Technical Specifications
Product Overview
V9 Series Distribution Enclosure

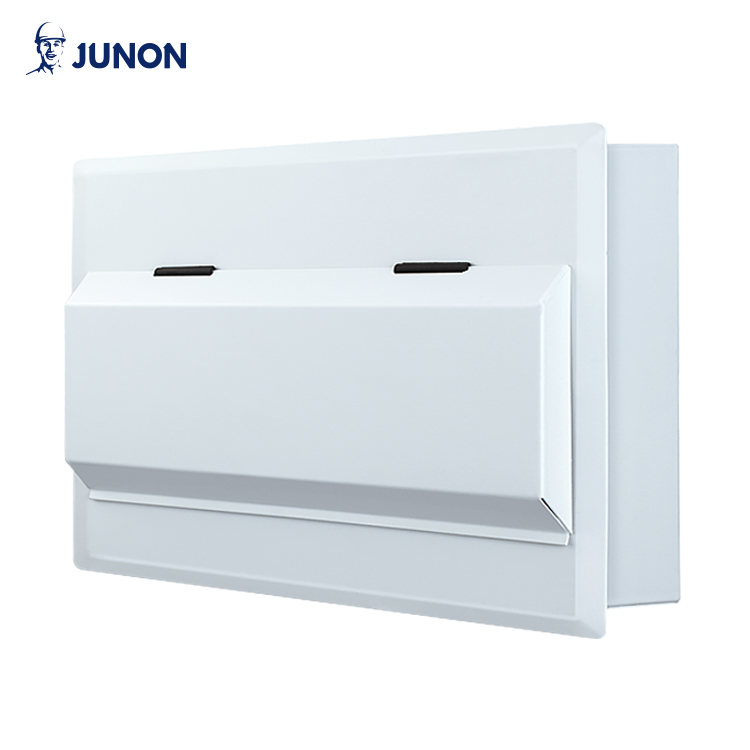

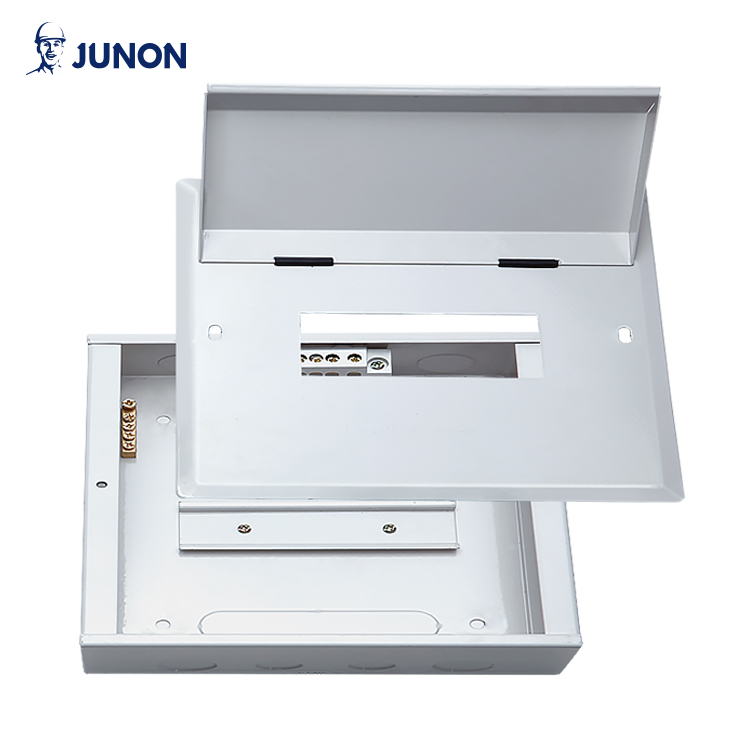

This metal wall panel serves as a robust enclosure for electrical supply distribution within buildings. Designed for professional electrical installations, the interior features a pre-fitted clip tray and DIN rail, facilitating the mounting of MCBs and other essential devices. The unit is constructed from a 1.0mm thick powder-coated iron sheet, ensuring durability and a clean, minimalist aesthetic suitable for various indoor environments.
Technical Specifications
Rated Current
63 A
Rated Current
Ingress Protection
IP 30
- Rated Voltage
- 230V/400V
- Rated Frequency
- 50Hz/60Hz
- Maximum Opening Angle
- 120 degrees
Construction & Design
Material Composition
| Component | Material |
|---|---|
| Enclosure Body | 1.0mm Thick Iron Sheet |
| Internal Bars | Copper |
Available Unit Configurations
- 6
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 17
- 19
- 21
- Mounting Options
- Flush mountingSurface mounting
Logistics & Compliance
- Certifications
- IEC
- Estimated Delivery Time
- 30 to 45 Days
