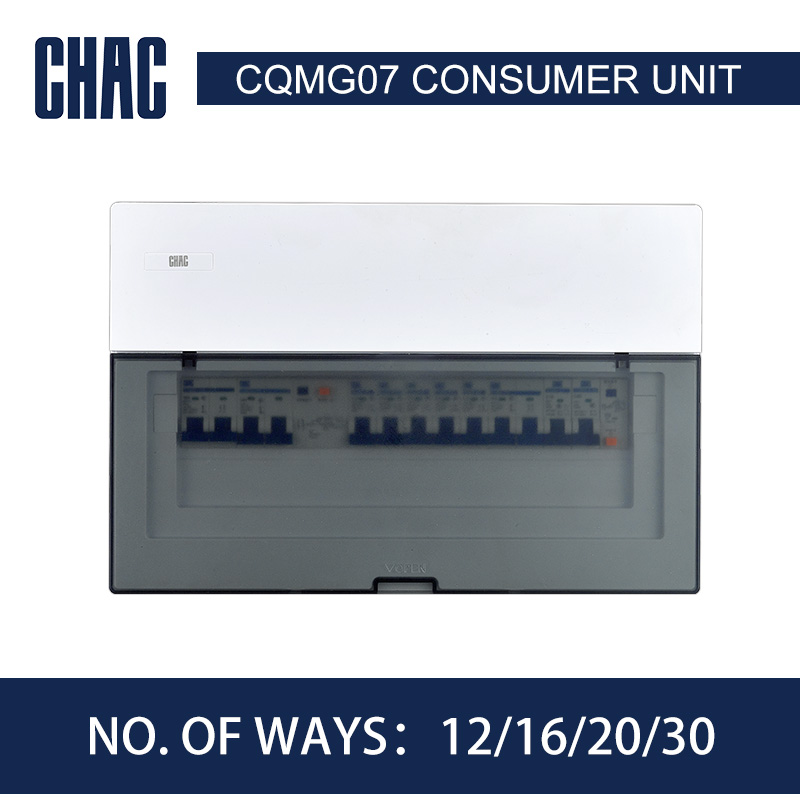

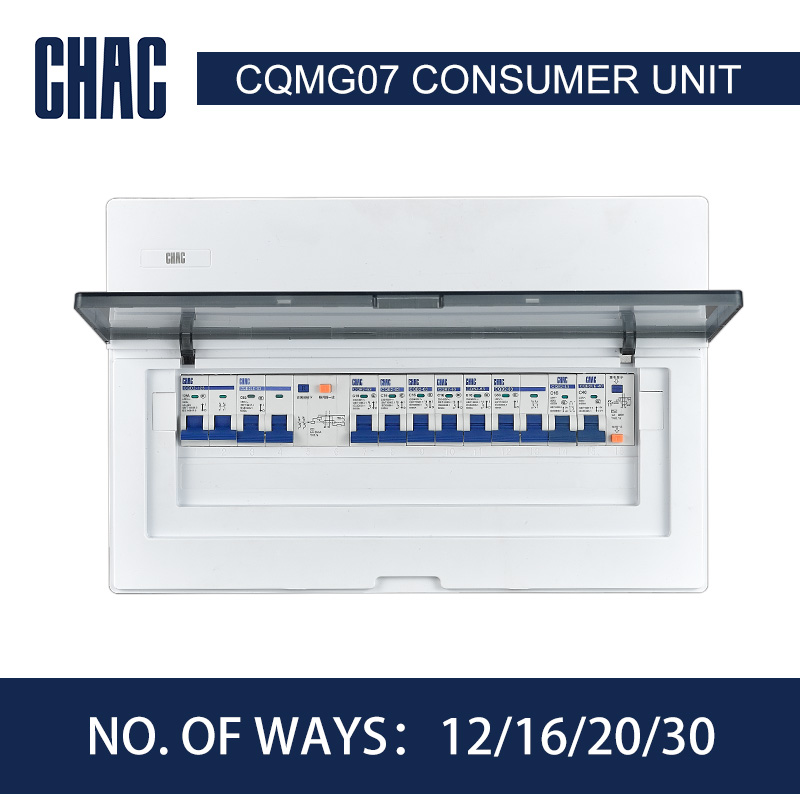

Electrical Distribution Consumer Unit
This electrical distribution consumer unit houses multiple circuit breakers to protect circuits from overcurrents and short circuits. Available in configurations for 12, 16, 20, or 30 circuits, it provides a centralized point for managing and protecting electrical circuits.
Technical Specifications
Product Overview
Professional Electrical Distribution
The CQMG07 consumer unit is a robust solution designed for end-of-power-line applications in residential and commercial environments. Constructed with flame-retardant PC materials and high-quality cold-rolled steel, it offers excellent impact resistance and insulation. This unit supports flexible configurations with 12 to 30 modules, making it suitable for high-rise buildings, hospitals, shopping malls, and enterprise infrastructure.
Technical Specifications
Available Modules
- 12
- 16
- 20
- 30
- Rated Frequency
- 50Hz / 60Hz
- Rated Voltage
- 230V / 400V
- Maximum Load
- 125 A
- Standards
- GB/T 7251.3-2006JB/T 7121-93
Construction & Materials
Installation Type
Surface-mounted
- Enclosure Material
- High quality cold rolled steel sheet (surface spraying)
- Internal Material
- Flame Retardant PC
Operating Environment
- Ambient Temperature Range
- -5°C to 40°C
- Maximum Altitude
- 2000 m
- Pollution Degree
- 2
