Technical Specifications
Product Overview
Versatile Fastening Solutions
This comprehensive set provides essential components for securing electrical conduits, cables, and insulation materials in diverse environments. Featuring high-durability construction and specialized materials, these fasteners are designed to support professional installations in residential, commercial, and industrial projects. The range includes varied clip styles and high-strength insulation fasteners to ensure reliable, long-term organization and attachment.

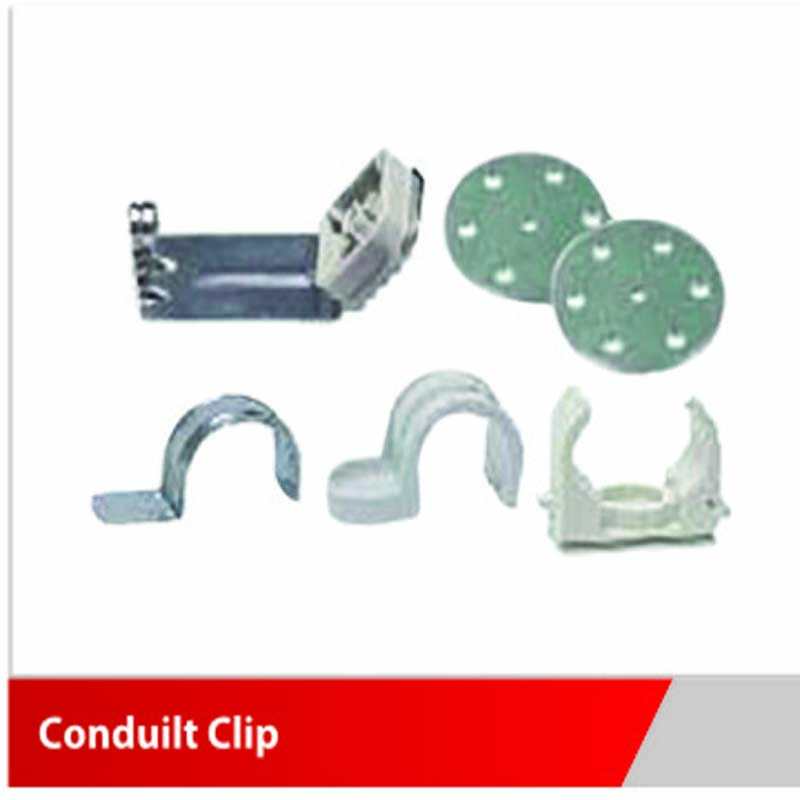

Conduit and Cable Fasteners
- Available Styles
- U-shaped clipsHinged clipsGrounding plates
Insulation Fastener Specifications
Material Composition
- Body: High-density polyethylene (HDPE)
- Drive Pin: C1065 high carbon steel
Performance Metrics
8 kN
Shear Strength
54 HRC
Core Hardness (Min)
Dimensions
| Specification | Range/Value |
|---|---|
| Fastener Length | 25 mm - 200 mm |
| Holding Diameters | 50 mm, 80 mm, 90 mm |
Compatible Insulation Materials
Extruded PolystyrenePolyesterFiberglass/RockwoolExpanded PolystyrenePolyurethane FoamPolyisocyanurate
- Drive Pin Finish
- Mechanical Zinc Plate
