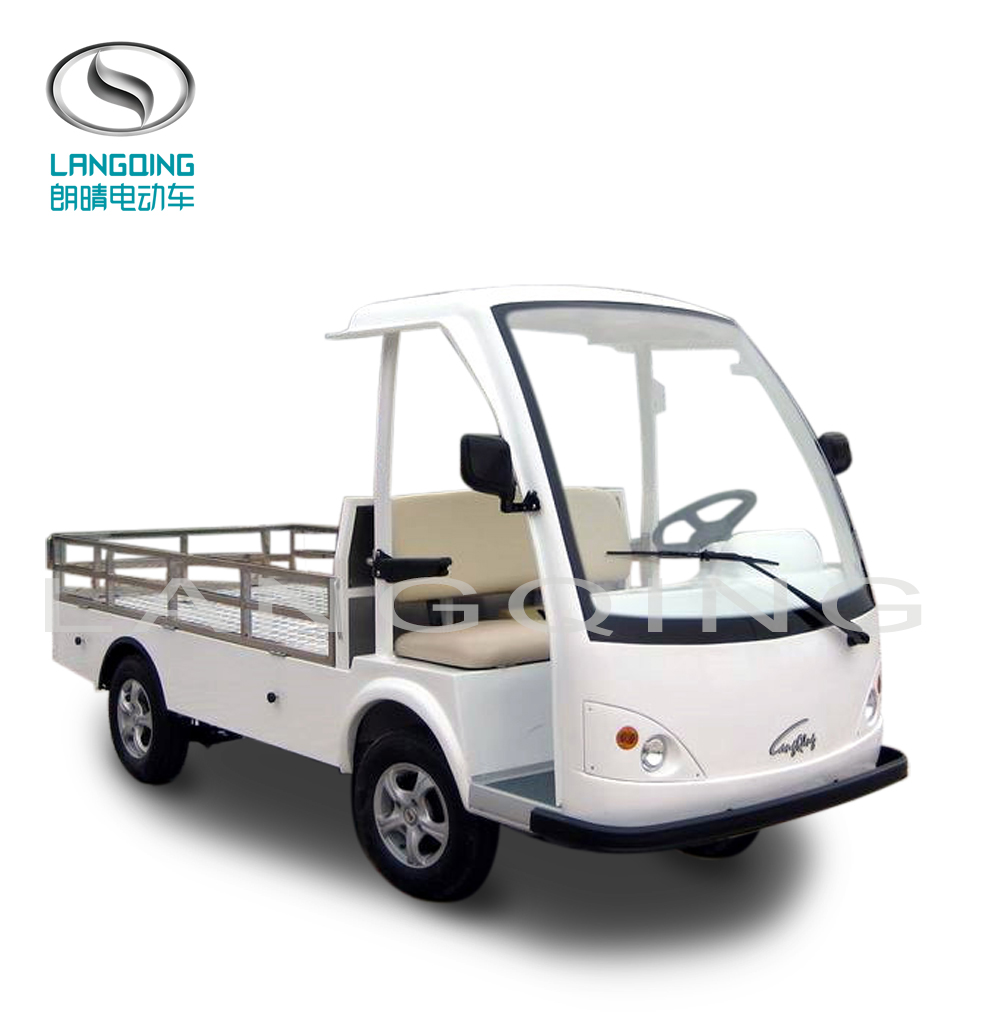

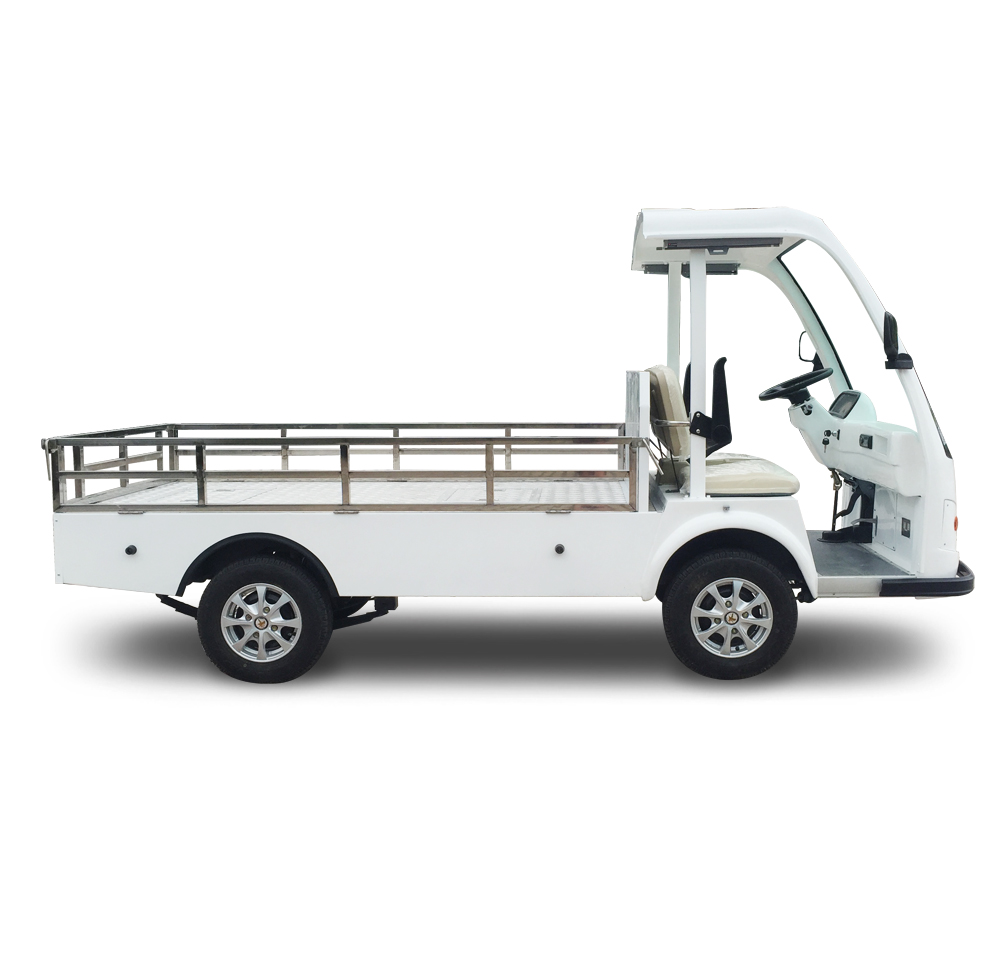

Electric Utility Vehicle with Cargo Bed
This electric freight car is designed for efficient and eco-friendly transportation of goods. Featuring a durable cargo bed, its electric powertrain ensures quiet operation and reduced emissions, making it suitable for various logistical needs.
Technical Specifications
Overview
Versatile Electric Utility Vehicle
This electric utility vehicle is engineered for efficient and eco-friendly material transport in diverse environments such as hotels, factories, communities, and hospitals. Featuring a robust chassis and a spacious cargo bed, it offers a practical, low-maintenance solution for logistical needs. With customizable loading capacities ranging from 900kg to 3000kg, this vehicle ensures quiet, emission-free operation for both indoor and outdoor applications.
Performance Metrics
Performance Highlights
28 km/h
Max Speed
70 km
Range
12 %
Climbing Ability
Technical Specifications
Dimensions
| Parameter | Value |
|---|---|
| Overall (L×W×H) | 3820×1430×1940mm |
| Cargo Bed (L×W×H) | 2400×1360×300mm |
| Axle Distance | 1935mm |
| Min. Clearance | 150mm |
Powertrain
- Motor: 4kW (DC)
- Battery: 6V x 8pcs
- Charging Time: 8–10 hours
Handling & Safety
- Min Turning Radius: 4.5m
- Braking distance: ≤4.5m
- Front Tread: 1210mm
- Rear Tread: 1200mm
Configuration
- Available Loading Capacities
- 900kg1200kg2000kg3000kg
- Passenger Capacity
- 2 seats
- Kerb Weight
- 900 kg
