Technical Specifications
Overview
Efficient Electric Utility Solutions

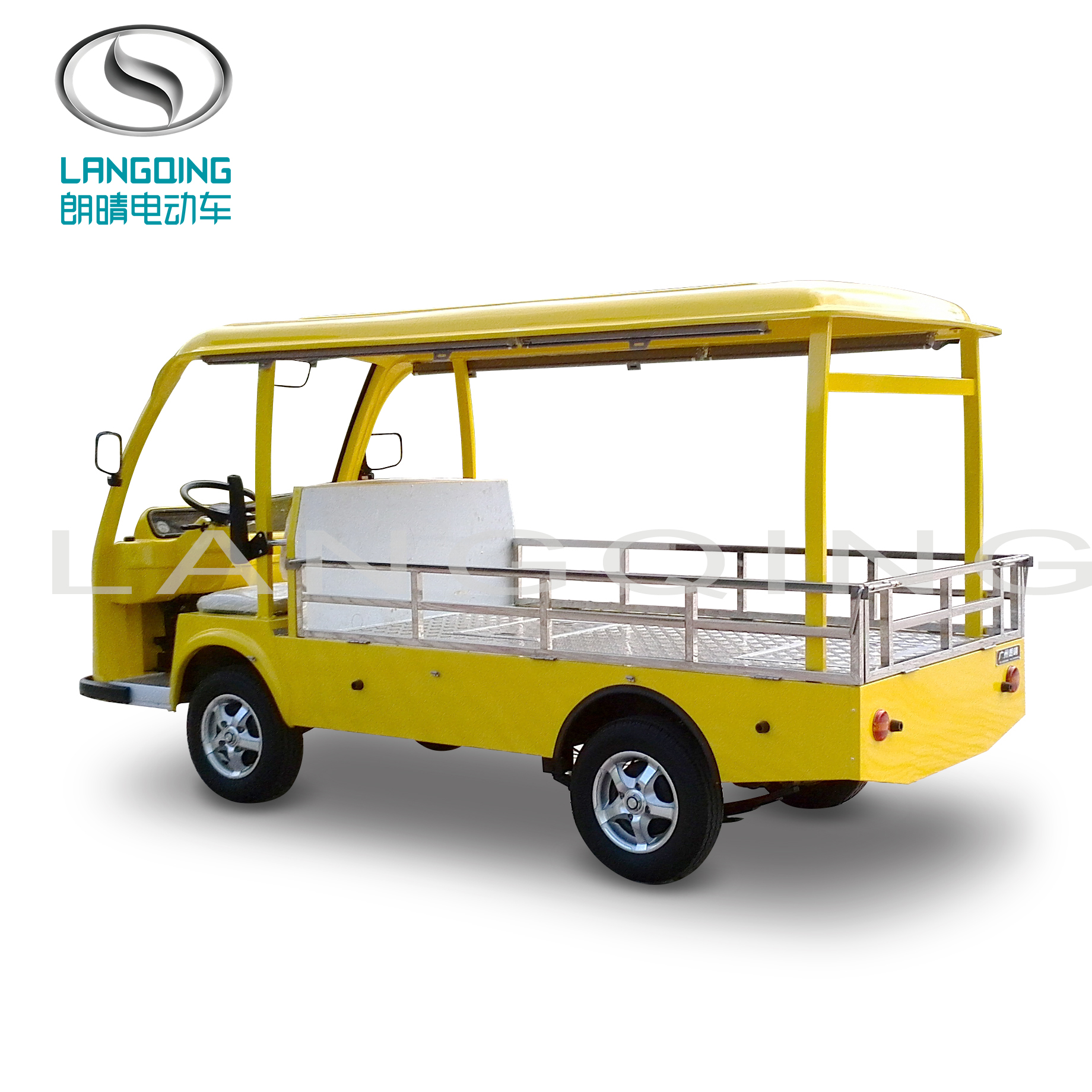

This electric utility truck is engineered for versatile transport tasks in factories, hotels, and agricultural settings. It features a robust open cargo bed design with a 900kg payload capacity, making it an ideal choice for reliable material handling. With its eco-friendly electric powertrain, it offers a sustainable, quiet, and efficient alternative for short-distance logistics.
Performance Metrics
Key Performance Metrics
28 km/h
Max Speed
70 km
Range
12 %
Climbing Ability
Technical Specifications
Dimensions
| Measurement | Value |
|---|---|
| Overall (L×W×H) | 3820×1430×1940mm |
| Cargo Bed (L×W×H) | 2400×1360×300mm |
| Axle Distance | 1935mm |
| Min. Clearance | 150mm |
Weight and Capacity
- Kerb Weight: 900kg
- Max Loading Weight: 900kg
- Passenger Capacity: 2 seats
Powertrain
- Motor: 4kW (DC)
- Battery: 6V x 8pcs
- Charging Time: 8–10 hours
Handling and Safety
- Front Tread: 1210mm
- Rear Tread: 1200mm
- Min Turning Radius: 4.5m
- Braking Distance: ≤4.5m
Features
- Available Configurations
- Open Cargo BedFull Roof DesignHydraulic Lift TailOptional Doors
