Technical Specifications
Overview

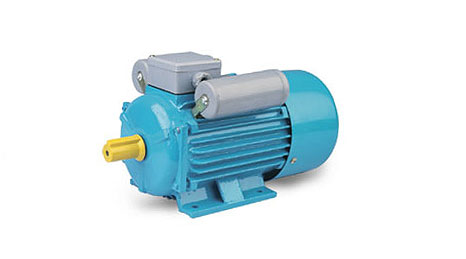

Heavy-Duty Induction Motors
These single-phase, capacitor-start induction motors are engineered to international standards for superior torque and reliability in demanding environments. Designed for versatility, they perform exceptionally well in voltage-fluctuating regions and are ideal for applications in pumping, compressors, agriculture, and manufacturing. The YCL series offers enhanced cooling, higher efficiency, and superior starting torque compared to the standard YC series.
Key Features
Why Choose This Motor
Quiet OperationCorrosion ResistantLow VibrationLow Power ConsumptionWater & Dust ResistantSuitable for Hot Environments
- Motor Features
- IP44 EnclosureClass B InsulationHeavy Duty Ball BearingsCast Iron FrameBalanced RotorsContinuous S1 Operation
Technical Specifications
Performance Metrics
50 Hz
Frequency
230 V
Rated Voltage
1.8 x Rated
Max Torque Ratio
Performance Data (Sample)
| Model | Power (kW) | Speed (r/min) | Efficiency (%) | Weight (kg) |
|---|---|---|---|---|
| YC80A-2 | 0.37 | 2,880 | 65 | 10 |
| YC90L-2 | 1.5 | 2,900 | 74 | 22 |
| YC132SB-4 | 3.7 | 1,450 | 76 | 60 |
| YCL112M-4 | 2.2 | 1,450 | 81.6 | 37 |
