Technical Specifications
Overview
Versatile Electric Transport

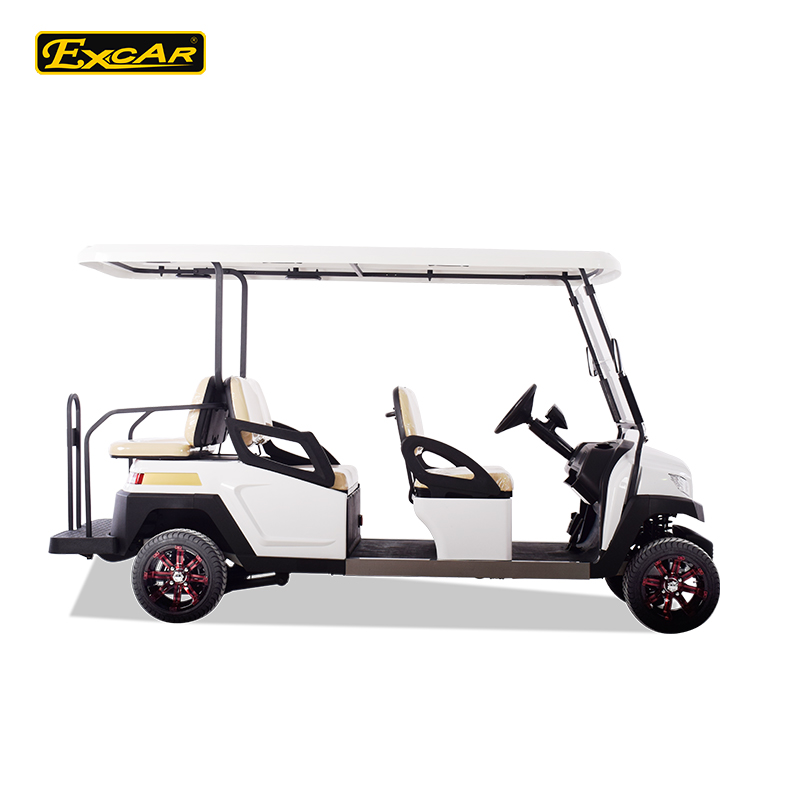

This electric golf cart is engineered for comfort and reliability, offering a 6-passenger capacity suitable for golf courses and community transport. It features a robust aluminum alloy chassis, independent suspension, and high-performance battery options to ensure smooth operation. With a focus on safety and durability, the vehicle includes LED lighting, mechanical braking, and all-weather seating.
Performance Metrics
Key Performance Metrics
6 people
Passenger Capacity
45 km/h
Max Speed (AC)
90 km
Max Endurance
35 %
Climbing Capacity
Technical Specifications
Powertrain Comparison
| Feature | DC System | AC System |
|---|---|---|
| Motor Power | 3.7kw | 5kw |
| Max Speed | 23km/h | 45km/h |
| Climbing Capacity | 30% | 35% |
| Endurance Mileage | 70-90km | 80-90km |
Dimensions
Physical Dimensions
- Overall: 3400 x 1120 x 1900 mm
- Wheelbase: 2540 mm
- Ground Clearance: 114 mm
- Front Wheel Tread: 900 mm
- Rear Wheel Tread: 1000 mm
Body and Frame
- Construction Materials
- Aluminum Alloy ChassisPP Engineering Plastic BodyGlass Fiber Reinforced RoofOrganic Glass WindshieldAnti-skidding Rubber Floor Mat
Electric System
Lighting & Electrical
LED HeadlightsLED TaillightsElectric HornReverse BuzzerBattery Power Indicator
Steering & Suspension
- Suspension System
- Mcpherson independent spring suspension (front) with coil spring hydraulic shock absorbers (rear)
