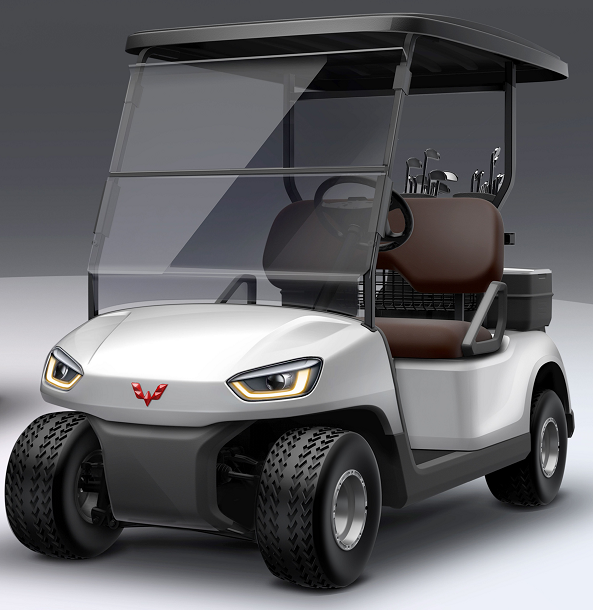

Electric Golf Car
This electric golf car is designed for golf course transportation. It features a 48V battery and a 3kW AC motor.
Technical Specifications
Overview
Eco-Friendly Transportation Solution
This electric golf car is a self-developed, environmentally friendly passenger vehicle specifically engineered for golf courses. Featuring a powerful 3kW AC asynchronous motor and a reliable 48V lead-acid battery system, it offers a blend of luxury, comfort, and safety. Beyond the golf course, this versatile vehicle is an ideal daily transportation tool for scenic spots, residential communities, and airports.
Performance & Power
Power Specifications
3 kW
Motor Power
48 V
System Voltage
- Motor Type
- AC Asynchronous
- Battery Configuration
- 48V Open liquid-rich lead-acid (8V x 6)
Dimensions & Geometry
Vehicle Dimensions
| Measurement | Value (mm) |
|---|---|
| Length | 2,306 |
| Width | 1,200 |
| Height | 1,706 |
| Wheelbase | 1,660 |
| Front Track Width | 875 |
| Rear Track Width | 980 |
- Curb Weight
- 435 kg
Model Information
Available Models
- WLDT2-Standard
- WLDT2-Basic
Applications
- Primary Use Cases
- Golf CoursesScenic SpotsCommunitiesAirports
