Electric Fan Motor for Air Conditioning Units
This electric fan motor is designed for use in air conditioning units. It features Class B insulation, overload protection, and quiet operation.
Technical Specifications
Product Overview
High-Performance HVAC Motor

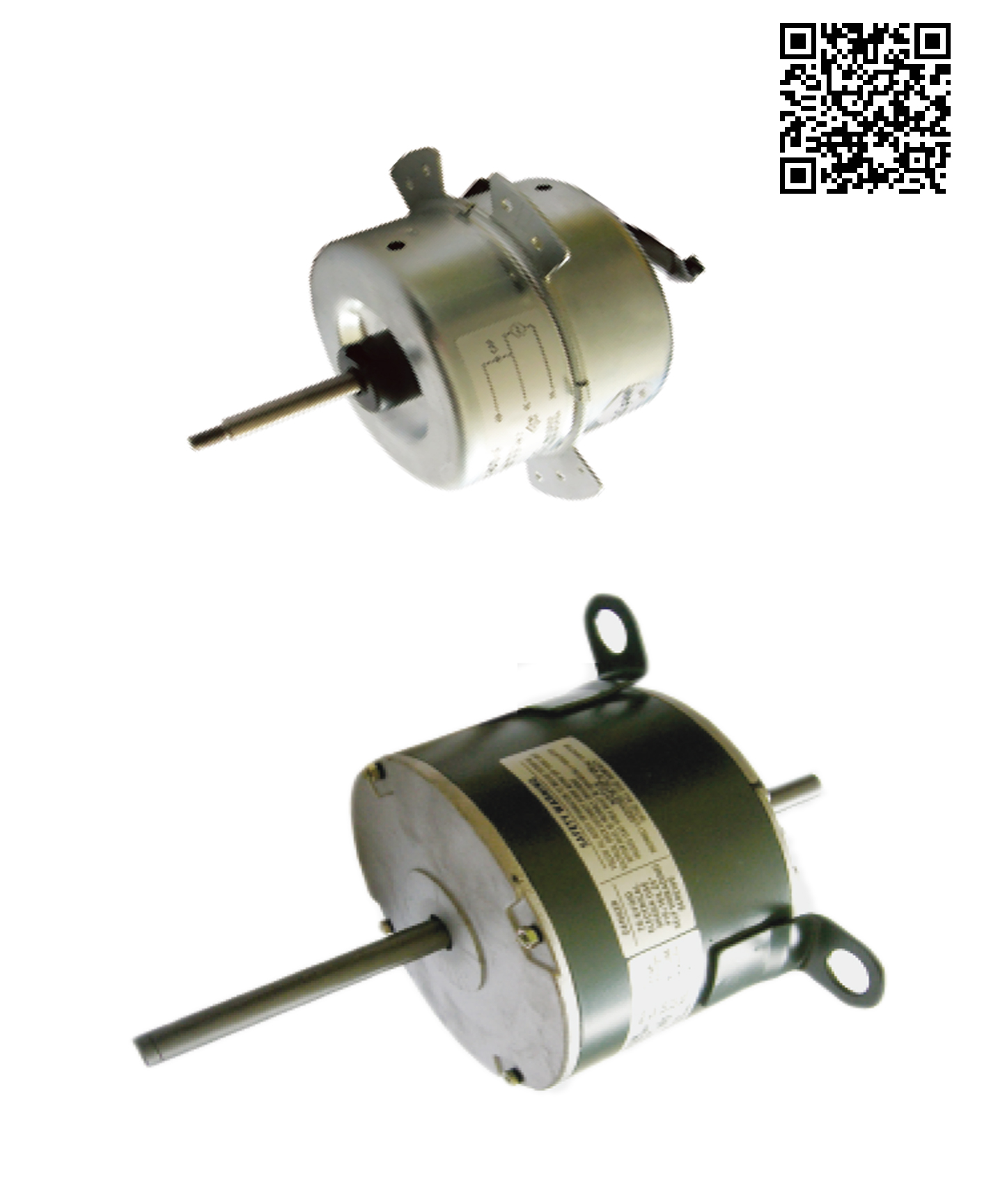

This 48 Frame double shaft fan motor is precision-engineered for window-type air conditioning units. It offers reliable, efficient performance with features like automatic reset thermal protection and all-angle mounting capabilities. Designed for quiet operation and longevity, this motor is an ideal solution for residential and commercial HVAC applications requiring consistent air movement.
Key Features
- Key Features
- Class B InsulationAll Angle MountingAutomatic Reset Thermal ProtectionOverload ProtectionContinuous Air OverHigh EfficiencyQuiet Operation
Technical Specifications
Available Motor Configurations
| Catalog No. | HP | Volts | RPM |
|---|---|---|---|
| YSK140-120-6A1-2 | 1/6 | 208-230 | 1000/2SPD |
| YSK140-150-6A1-2 | 1/5 | 208-230 | 1050/3SPD |
| YSK140-185-6A1-2 | 1/4 | 208-230 | 1050/3SPD |
| YDK140-550-6A1-2 | 3/4 | 208-230 | 1075 |
| YDK140-735-6A1-2 | 1 | 208-230 | 1125 |
