Electric Crawler Transporter with 1-Ton Capacity
This electric crawler transporter features a 1-ton payload capacity for efficient material handling. Its crawler tracks provide excellent traction on various terrains, ensuring reliable performance.
Technical Specifications
Overview
High-Efficiency Crawler Transporter
This versatile tracked transporter is engineered for high efficiency in challenging environments, including farmland, mountain slopes, and construction sites. Equipped with a robust electric powertrain, it offers a reliable 1-ton payload capacity and excellent traction for navigating narrow or uneven terrains. The integration of a hydraulic lift system and durable rubber-steel tracks ensures seamless material handling and superior durability.
Performance Metrics
Performance Specifications
1 ton
Payload Capacity

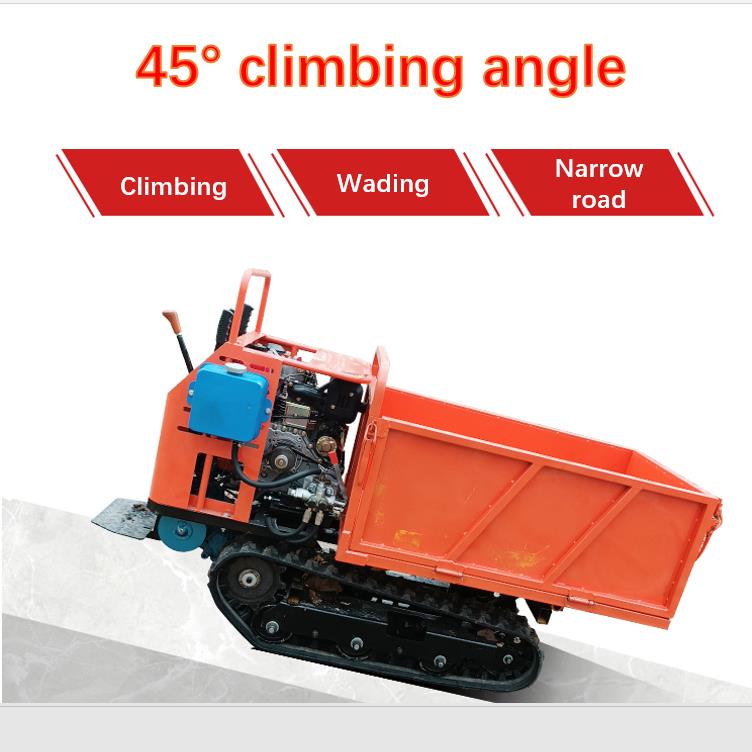

45 degrees
Max Climbing Angle
1.5 meters
Min Turning Radius
Technical Specifications
Dimensions & Weight
| Parameter | Value |
|---|---|
| Vehicle Dimensions | 2000 x 850 x 1250 mm |
| Cargo Box Size | 1300 x 850 x 500 mm |
| Net Weight | 595 kg |
Chassis and Tracks

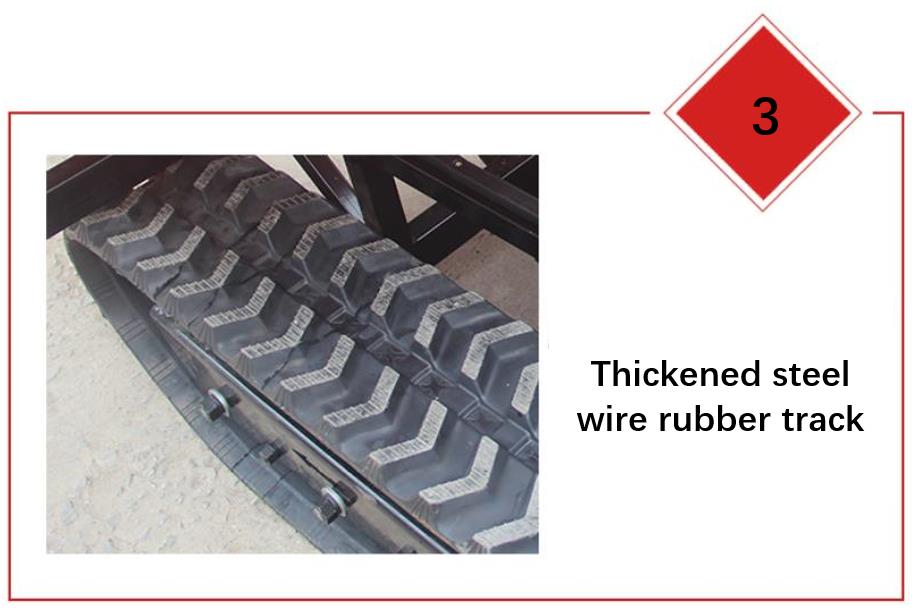

- Track Type: Steel wire rubber track
- Track Specifications: 230 x 72 x 46 mm
- Gearbox Material: Nodular cast iron 180
Features
- Functional Features

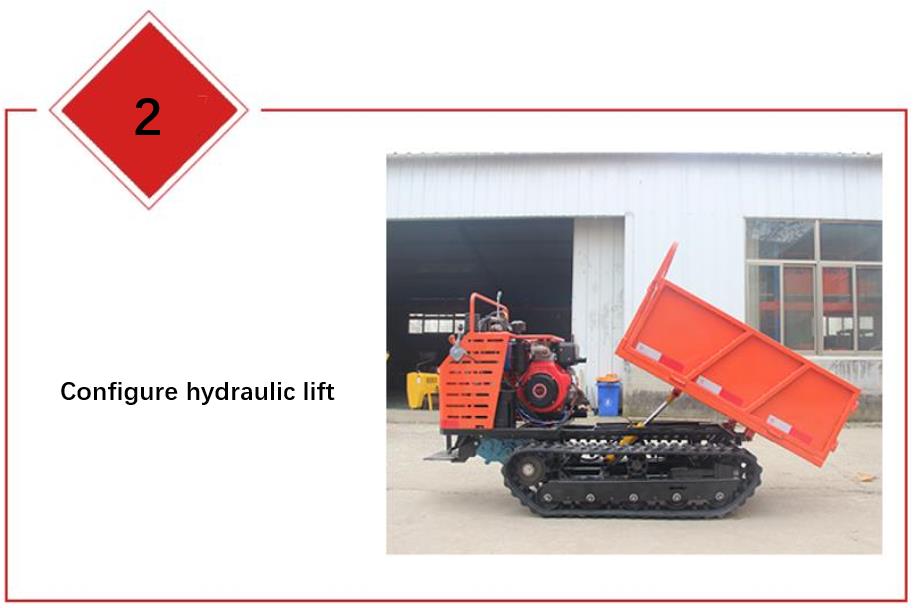

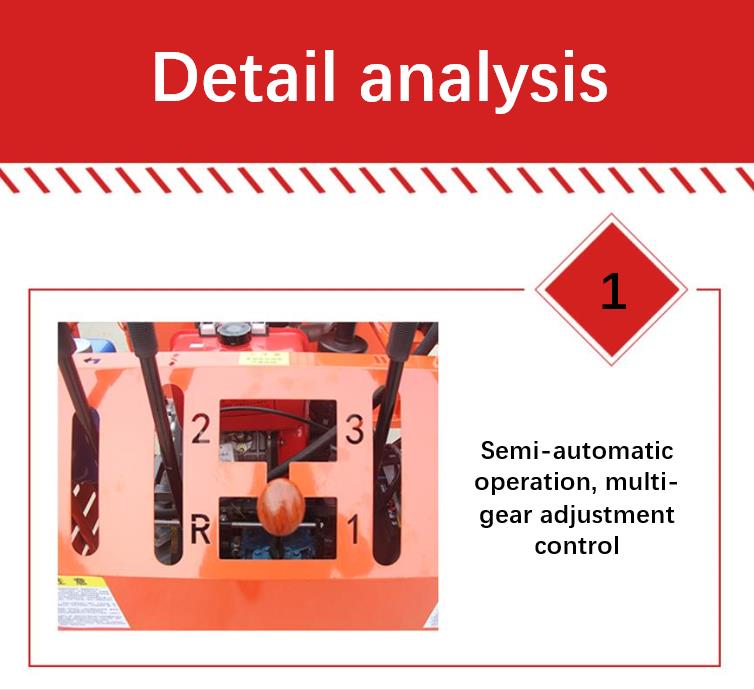

- Hydraulic Dump SystemSemi-automatic Multi-gear ControlWading Capability500kg Crane Function
