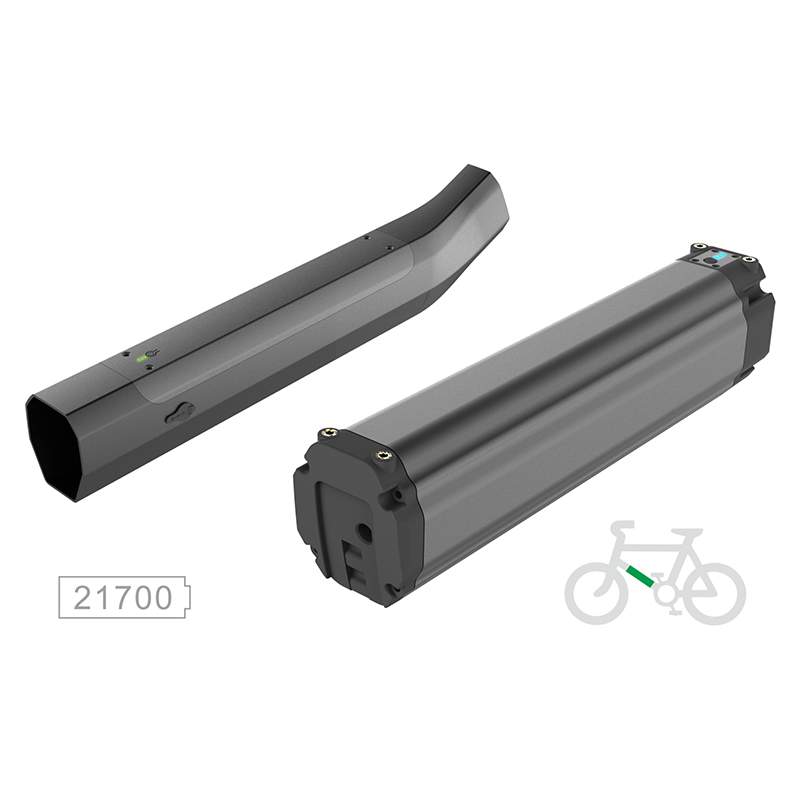

Electric Bicycle Lithium-Ion Battery Pack, 36V 20Ah
This lithium-ion battery pack is designed for electric bicycles and e-bikes. It provides reliable power, extended life, and high quality performance.
Technical Specifications
Product Overview
High-Performance E-Bike Power Solution
This 36V 20Ah lithium-ion battery pack is engineered for reliability and extended range, utilizing high-grade 21700 (NCM) cells for superior energy density. It features an advanced, independently developed BMS intelligent management system that provides real-time monitoring and comprehensive safety protections. Designed for versatility, the unit operates efficiently in extreme temperatures ranging from -20°C to 60°C, making it suitable for diverse riding conditions.
Technical Specifications
- Voltage
- 36 V
- Capacity
- 20 Ah
- Cell Type
- 21700 (NCM)
- Configuration
- 10S4P
- Dimensions
- 405.3mm x 77.6mm x 94.7mm
Performance Metrics
Operating Temperature
-20 °C
Min Temp
60 °C
Max Temp
Safety & Protection
Insurance Coverage
China Pacific Insurance
- Protection Features
- Overvoltage ProtectionOvercharge ProtectionOverdischarge ProtectionOvercurrent ProtectionShort-circuit ProtectionTemperature ProtectionCharging Protection
