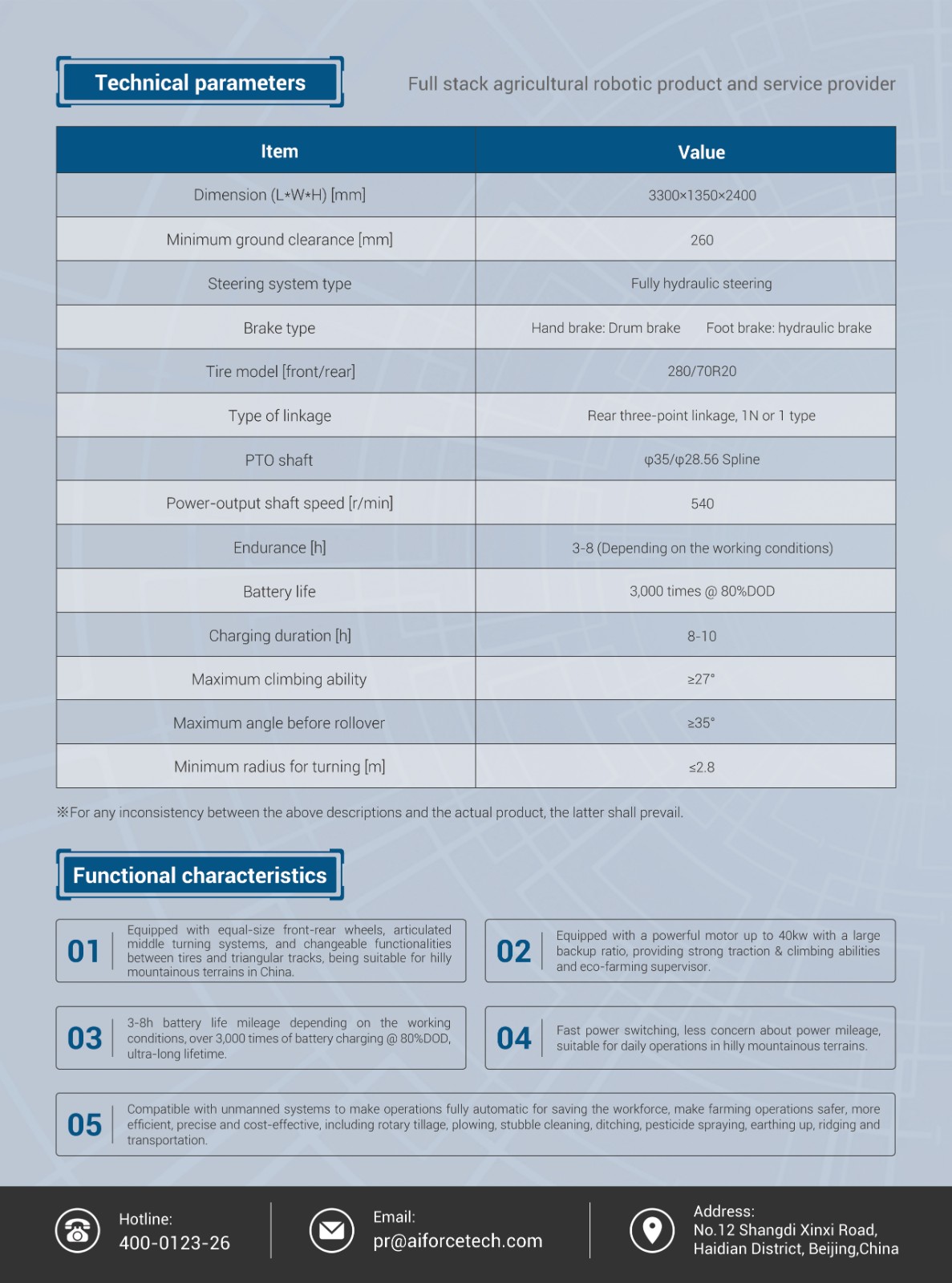

Technical Specifications
Overview
Designed for Challenging Terrain
This fully-electric articulated tractor is specifically engineered for hilly and mountainous agricultural environments. Featuring equal-size front and rear wheels with an articulated middle turning system, it offers exceptional maneuverability and a tight turning radius. The machine supports versatile configurations, including both tires and triangular tracks, allowing it to adapt seamlessly to various soil conditions and terrains.
Performance & Power
- Motor Power
- 40 kW
- Maximum Climbing Ability
- ≥27°
- Minimum Turning Radius
- 2.8 m
- Maximum Angle Before Rollover
- ≥35°
Battery & Charging
- Operating Endurance
- 3-8 hours (condition dependent)
- Charging Duration
- 8 h
- Battery Life
- 3,000 cycles @ 80% DOD
Technical Specifications
- Dimensions (L×W×H)
- 3300×1350×2400 mm
- Minimum Ground Clearance
- 260 mm
- Steering System
- Fully hydraulic
- Brake System
- Hand: Drum brakeFoot: Hydraulic brake
- Tire Model
- 280/70R20
- Rear Linkage
- Three-point (1N or 1 type)
- PTO Shaft
- φ35/φ28.56 Spline, 540 r/min
Operational Capabilities
Supported Operations
- Rotary tillage
- Plowing
- Stubble cleaning
- Ditching
- Pesticide spraying
- Earthing up
- Ridging
- Transportation
