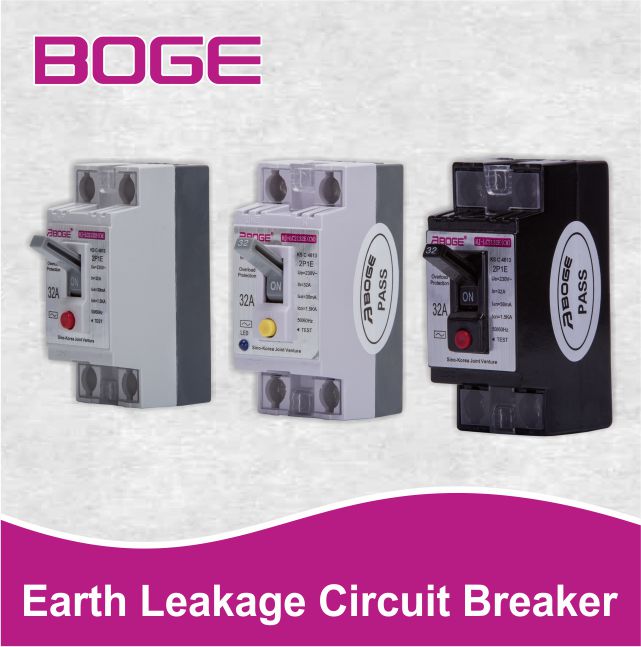

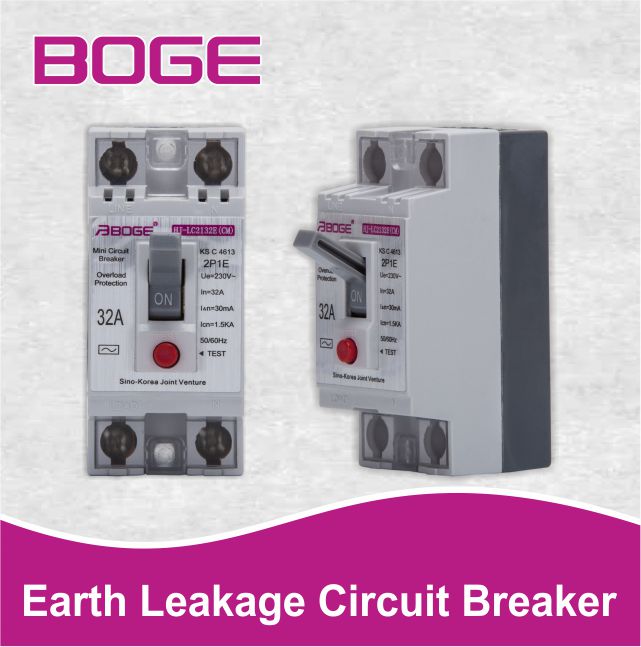

Earth Leakage Circuit Breaker with Overload and Short Circuit Protection
This earth leakage circuit breaker provides overload and short circuit protection. It is equipped with a test function.
Technical Specifications
Product Overview
Comprehensive Circuit Protection
This Earth Leakage Circuit Breaker (ELCB) is designed to provide robust safety for electrical systems by offering multi-layered protection. It effectively prevents hazards associated with overloading, short circuits, leakage, and over-voltage. Engineered for reliability, this unit ensures consistent performance in 230V applications, making it an essential component for electrical distribution and safety management.
Electrical Specifications
Available Rated Currents
- 10
- 16
- 20
- 25
- 32
- 40
- Rated Voltage
- AC 230V
- Operating Frequency
- 50/60Hz
- Rated Short Circuit Capacity
- 1.5 KA
- Residual Operating Current
- 15mA30mA
Mechanical & Construction
Materials
| Component | Material |
|---|---|
| Cover | Nylon |
| Base | BMC |
Dimensions
70 mm
Height
37 mm
Width
- Pole Configuration
- 2P1E
Certifications & Standards
Compliance Standards
KS C 4613
