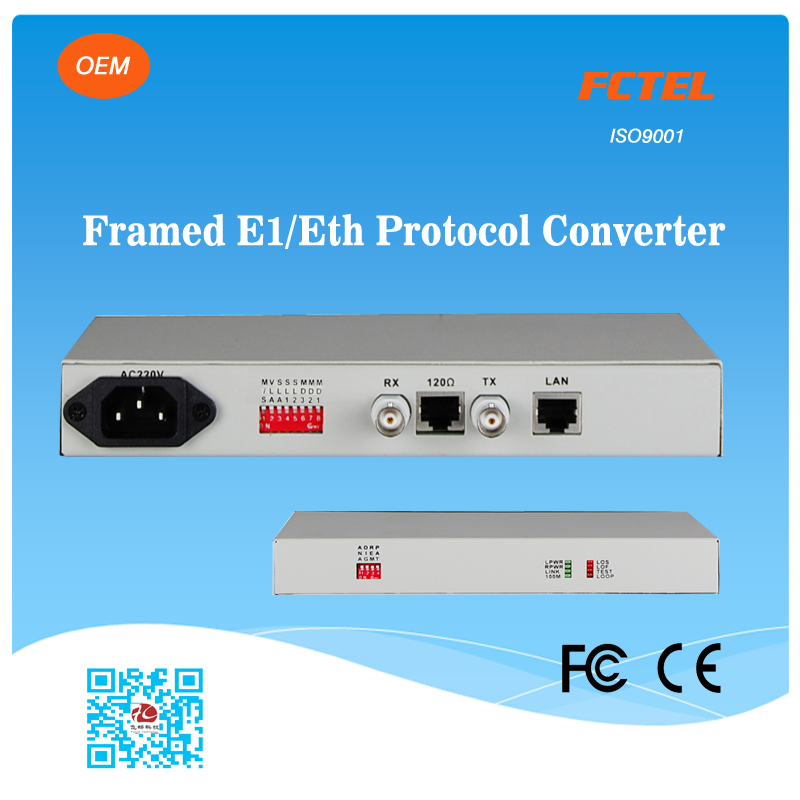

E1 to Ethernet Protocol Converter
This protocol converter bridges E1 and Ethernet networks, providing 10/100Base-T Ethernet data transmission on an E1 channel. The device supports E1 to Ethernet protocol conversion with options for BNC/RJ45 interfaces.
Technical Specifications
Product Overview
High-Performance E1/Ethernet Bridging
This FPGA-based protocol converter provides a reliable bridge between framed E1 and 10/100Base-T Ethernet interfaces, enabling cost-effective data transmission over existing E1 infrastructure. Designed for both local and remote interconnectivity, it features advanced self-learning capabilities and comprehensive loop-back testing to simplify project deployment and daily maintenance. It is an ideal solution for extending Ethernet networks using PDH, SDH, or microwave channels.
Technical Specifications
E1 Interface Capabilities
- Framed E1 interface
- 64K-2048K configurable rate
- Any timeslot support
- 75 Ohm (unbalance) and 120 Ohm (balance) impedance
Clock Types
E1 Master ClockE1 Line Clock
Loop Back Modes
- E1 interface Loop Back (ANA)
- Ethernet interface Loop Back (DIG)
- Remote Ethernet interface Loop Back (REM)
- Ethernet Interface
- 10/100Base-TAuto-NegotiationAUTO-MDIXHalf/Full Duplex
Performance Metrics
Key Performance Metrics
2,036 Bytes
Max Jumbo Frame
4,096 Entries
MAC Address Table
Management & Monitoring
Management & Diagnostics
| Feature | Description |
|---|---|
| Network Management | SNMP Support |
| OAM | Non-intrusive management data |
| Status Indicators | Power, E1 signal loss, Link status |
| Reliability | Ethernet monitor self-reset |
