Dual Motorized Iris Control Module
This module is designed for surveillance and analog lens applications requiring precise aperture adjustment. It features dual motorized iris controls with geared mechanisms and a flexible printed circuit board for connectivity.
Technical Specifications
Product Overview
Precision Iris Control Module
The VPIRIS38 is a specialized electromechanical component designed for high-precision surveillance and analog lens applications. It features dual motorized iris controls equipped with geared mechanisms for accurate aperture adjustment. Integrated with a flexible printed circuit board (FPC), this module provides reliable connectivity and seamless interface with external control systems, making it an ideal solution for automated remote iris management.
- Key Features
- Dual Motorized IrisGeared MechanismFPC IntegrationRemote Control Ready
Electrical Specifications
- Rated Test Conditions
- 2.6V 160PPS
- Operating Voltage Range
- 2.6V - 3.8V
- Iris Resistance
- 28.5 ±10% Ω
- IR Voltage
- 4V (5V Max)
- IR Resistance
- 40 ±10% Ω
Optical & Mechanical

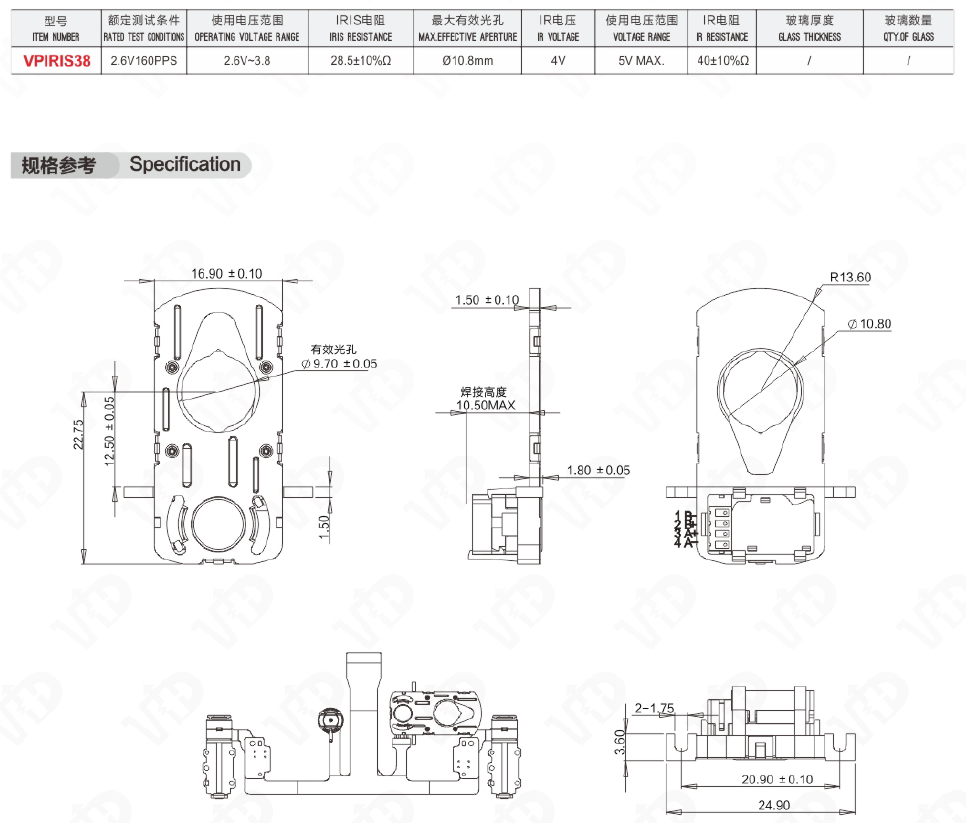

Key Dimensions Reference
| Parameter | Value (mm) |
|---|---|
| Effective Aperture | 9.70 ±0.05 |
| Length A | 16.90 ±0.10 |
| Length B | 20.90 ±0.10 |
| Width | 12.50 ±0.05 |
| Radius | R13.60 |
- Max Effective Aperture
- 10.8 mm
- Quantity of Glass
- 1
- Max Soldering Height
- 10.5 mm
