Motorized Rotation Module for Surveillance
This motorized rotation module is designed for security and surveillance applications. It features a robust gear system driven by a compact motor, enabling precise and controlled rotational movement.
Technical Specifications
Overview
Precision Surveillance Module
The VIR156 is a precision-engineered motorized rotation module designed specifically for security and surveillance applications. It features a robust gear system driven by a compact motor, enabling precise and controlled rotational movement for optical components. With a threaded center aperture and reliable electrical connectivity, this module is built for seamless integration into demanding surveillance control systems.
Electrical Specifications
Operating Voltage Range
3 V
Min Voltage
4.5 V
Max Voltage
- Rated Test Conditions
- 2.8V 800PPS
- Winding Resistance
- 20 Ω
- Pin Assignment
- B+ A- B- A+
Mechanical Specifications

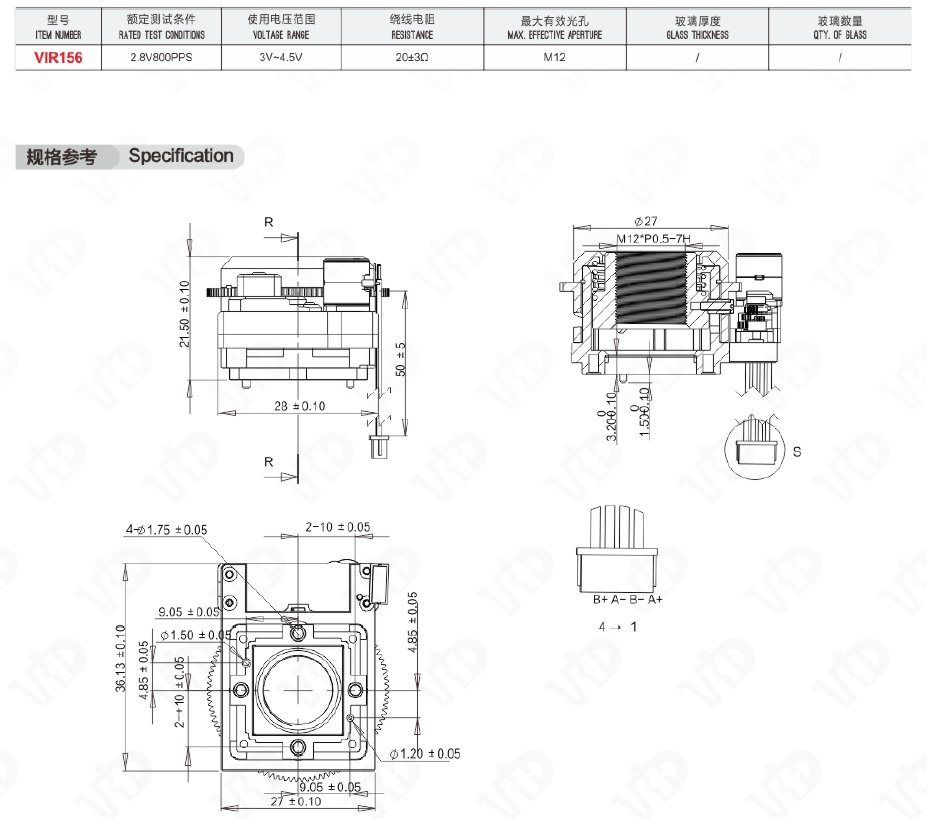

Key Dimensions
| Feature | Measurement |
|---|---|
| Height | 21.50 ±0.10 mm |
| Width | 28 ±0.10 mm |
| Overall Height | 50 ±5 mm |
| Front Face Dimension | 36.13 ±0.10 mm |
- Max Effective Aperture
- M12
- Aperture Thread Type
- M12*P0.5-7H
