Technical Specifications
Overview

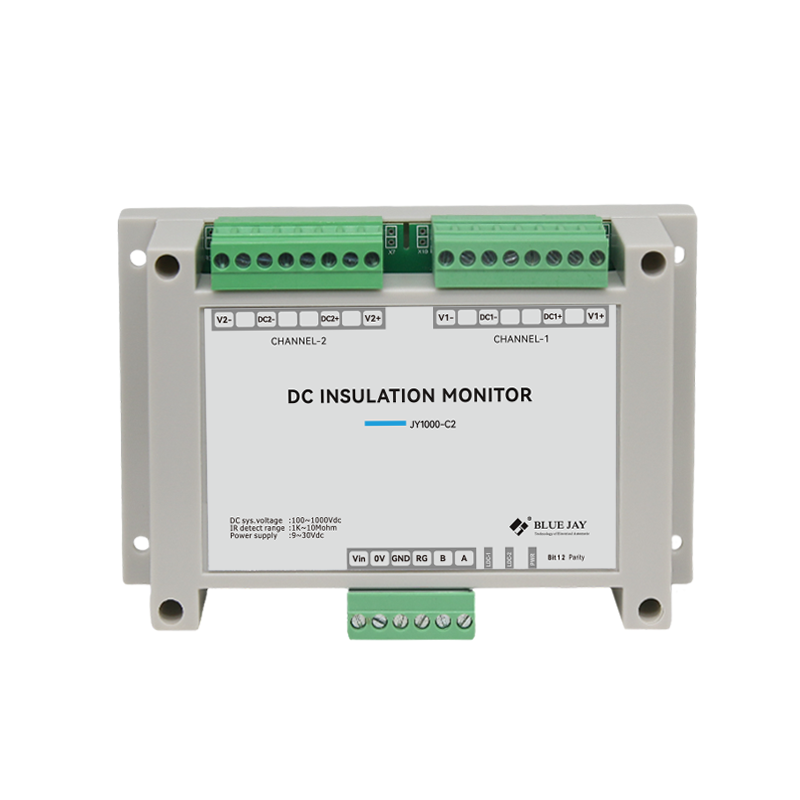

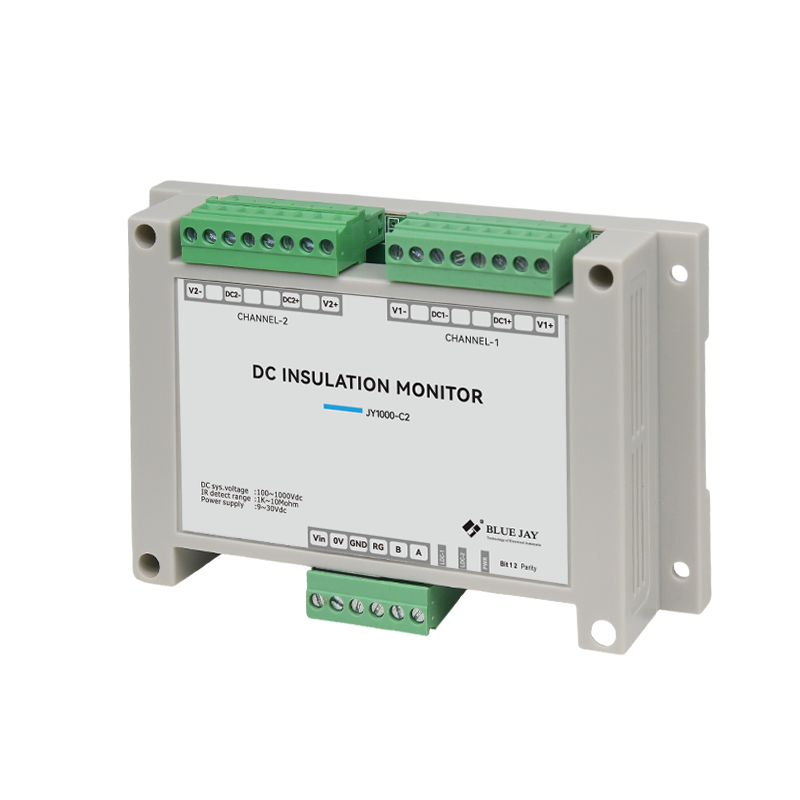

Dual Channel DC Insulation Monitor
The JY series is a specialized device designed for real-time, online monitoring of insulation resistance in DC floating systems. Featuring two independently controlled channels, it allows for simultaneous monitoring of positive and negative poles without interference, even during DC voltage fluctuations. This robust unit ensures safety in critical infrastructure, such as EV charging piles and photovoltaic systems, by providing continuous resistance and voltage data via RS-485 Modbus communication.
Key Performance Metrics
Core Specifications
1,000 V
Max DC Voltage
10 MΩ
Max Resistance
2 ch
Monitoring Channels
Technical Specifications
Electrical Characteristics
| Parameter | Value/Range |
|---|---|
| DC Voltage Range | 0~1000V |
| Insulation Resistance Range | 1KΩ~10MΩ |
| Power Supply | 9~30VDC |
| Power Consumption | 6W |
| Off-line pressure test | <2mA |
Accuracy Specifications
- Insulation monitoring accuracy (100-300V): ≤3KΩ+10%
- Insulation monitoring accuracy (300-1000V): ≤3KΩ+5%
- Measurement accuracy: ≤2V+0.3%
Mechanical & Environmental
Installation Type
36mm Din RailScrew fixation
- Environmental Ratings
- Operating Temp: -40°C to 70°CStorage Temp: -40°C to 125°C
- Physical Dimensions
- 90mm x 145mm x 40mm
Features & Connectivity
- Communication Interface
- RS485 Modbus
- Typical Applications
- EV DC charging systemPhotovoltaic systemEnergy storage systemDC power grid
