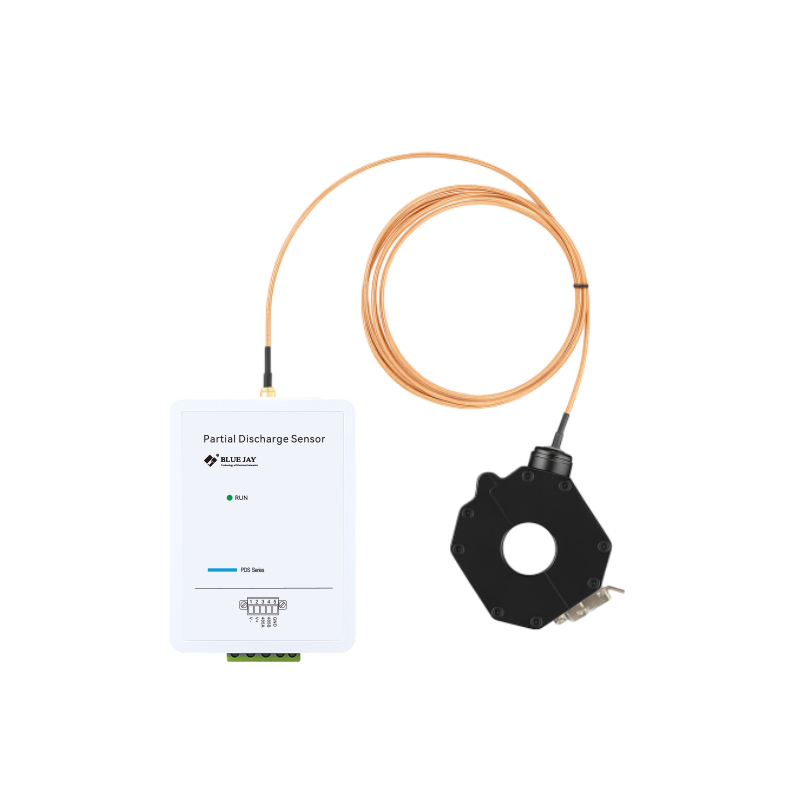

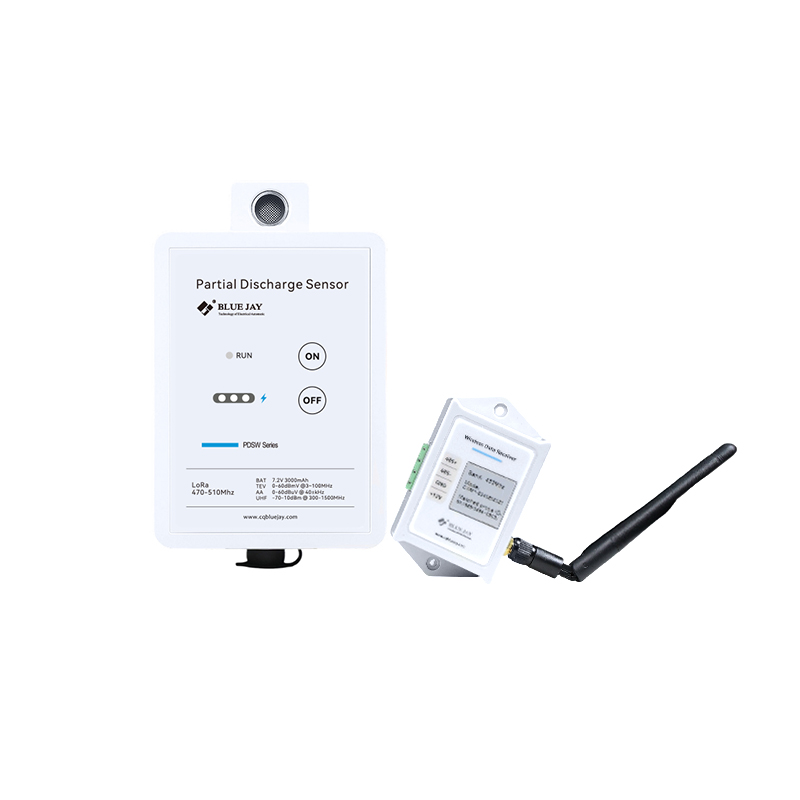

Partial Discharge Monitoring System for Switchgear
The partial discharge monitoring system is an advanced solution for continuous partial discharge detection. It is suitable for monitoring in medium-voltage and high-voltage electrical assets such as switchgear.
Technical Specifications
Product Overview
Advanced Partial Discharge Monitoring
The online partial discharge monitoring system is designed to provide real-time insulation degradation diagnostics for switchgear. By utilizing a combination of high-frequency sensors and automated data acquisition, it enables proactive maintenance strategies to prevent costly equipment failures. The system supports complex integration via industrial protocols and is built for long-term reliable performance.
Technical Specifications
TEV Measurement Range
60 dBµV
TEV Range
AA Measurement Range
60 dBµV
AA Range
UHF Measurement Range
100 dBm
UHF Max
System Capabilities
HMI Features
Panel-mountedAutomatic data acquisitionAutomated analysisSCADA integration ready
- Maximum Sensors Supported
- 96
- Communication Interfaces
- RS-485MODBUS-RTULoRa (470-510MHz)
Power and Installation
Power Requirements
- External power supply support
- Battery power: 7.2V 3000mAh
