Technical Specifications
Overview
Energy-Efficient Power Generation
This gas power station is designed specifically to provide reliable power for electric drilling rigs. By focusing on fuel-to-electricity efficiency, it significantly reduces both operating costs and emissions compared to traditional setups. The system is engineered for versatility, ensuring precise control and stable performance across various challenging drilling conditions.

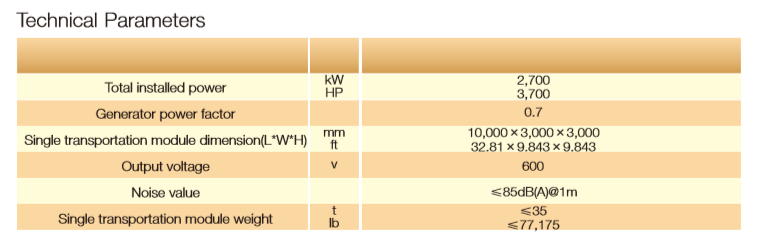

Technical Specifications
- Total Installed Power
- 2700 kW
- Total Installed Power (HP)
- 3700 HP
- Generator Power Factor
- 0.7
- Output Voltage
- 600 V

Operational Metrics
- Noise Level
- ≤ 85 dB(A) @ 1m
- Key Operational Benefits
- Low NoiseLow EmissionsFast TransportationPrecise ControlLow Fuel Cost
Logistics and Dimensions
- Single Module Dimensions (L x W x H)
- 10,000 x 3,000 x 3,000 mm
- Single Module Weight
- 35 t
