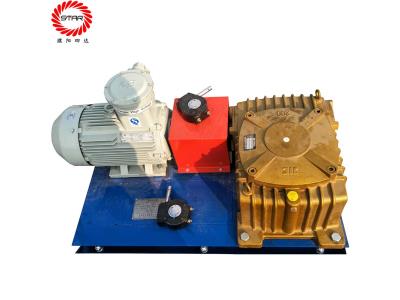

Drilling Fluid Mud Agitator for Oilfield Mud Tanks
This drilling fluid mud agitator provides continuous agitation of drilling liquid to maintain uniformity and keep solid particles suspended. The reducer adopts a turbine worm single reduction gear, offering compact structure, light weight, and low noise.
Technical Specifications
Overview
High-Efficiency Drilling Fluid Agitation
This drilling fluid mud agitator provides continuous and reliable agitation for drilling liquids, ensuring uniformity and preventing solid particles from settling. Designed for demanding oilfield applications, the unit features a robust turbine worm gear reducer for high efficiency, balanced transmission, and low noise operation. Its compact, lightweight construction facilitates easy installation and stable performance in various mud tank systems.
Technical Specifications
Performance Comparison
| Model | Power (kW) | Impeller RPM | Weight (kg) |
|---|---|---|---|
| JNJ-5.5 | 5.5 | 60/70 | 530 |
| JNJ-7.5 | 7.5 | 60/70 | 600 |
| JNJ-11 | 11 | 60/70 | 653 |
| JNJ-15 | 15 | 60/70 | 830 |
Dimensions Range
- 1000×700×580 mm
- 1055×760×610 mm
- 1200×810×675 mm
- 1245×810×675 mm
- Key Features
- Compact StructureTurbine Worm ReducerBalanced TransmissionHigh EfficiencyLow Noise
- Motor Speed
- 1450/1750 rpm
