Technical Specifications
Product Overview
Precision Optical Image Inversion

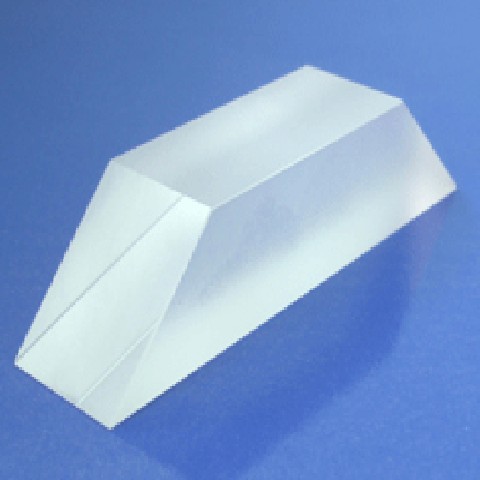

The Dove Prism is a specialized reflective prism designed for image inversion and beam deviation in optical systems. Manufactured from high-grade optical glass, this truncated right-angle prism effectively flips images along a single axis, making it essential for applications in microscopy, imaging, and optical instrumentation. Its design ensures high transmission and minimal beam displacement, providing reliable performance for demanding optical setups.
Material & Construction
- Material Composition
- SF11 Grade A Optical GlassBK7 Grade A Optical Glass
- Bevel
- 0.25mm x 45deg
Optical Performance
Clear Aperture
85 %
Clear Aperture
- Deflection Model
- 180° deflection (Standard)
- Coating
- R<0.25% at 1550nm (on big face)
Manufacturing Tolerances
Precision Tolerances
| Parameter | Tolerance |
|---|---|
| Dimension Tolerance | +0.0, -0.2mm |
| Angle Tolerance | <3 arc minutes |
| Flatness | lambda/2 632.8nm |
| Surface Quality | 60-40 scratch and dig |
