Double Universal GFCI Socket 16A
Double universal socket with grounding GFCI 16A. This unit is designed for feeding additional terminals and requires ground fault protection.
Technical Specifications
Product Overview
Advanced Electrical Safety Solution
The Double Universal GFCI Socket provides essential leakage protection for single-phase 250V power supplies, automatically disconnecting power within 0.1 seconds when a ground fault is detected. Designed for both household and commercial environments, it features integrated anti-lightning and anti-surge protection to safeguard sensitive electronics. Constructed from flame-retardant PC material, this socket is a reliable safety upgrade for appliances ranging from water heaters to hand-held power tools.
Key Performance Metrics
Technical Highlights
16 A
Rated Current
3,500 W
Rated Power
0.1 s
Breaking Time
Electrical Specifications
- Rated Voltage
- 250 VAC
- Rated Frequency
- 50Hz/60Hz
- Mechanical & Electrical Life
- 6000 cycles
Safety & Protection
- Rated Leakage Current
- 10-15mA
- Protection Capabilities
- Leakage ProtectionAnti-LightningAnti-SurgeFlame Retardant
- Housing Material
- Insulated flame retardant PC
Installation & Design
Design Features
- Double universal socket layout
- Integrated grounding
- Reset and Test functional buttons

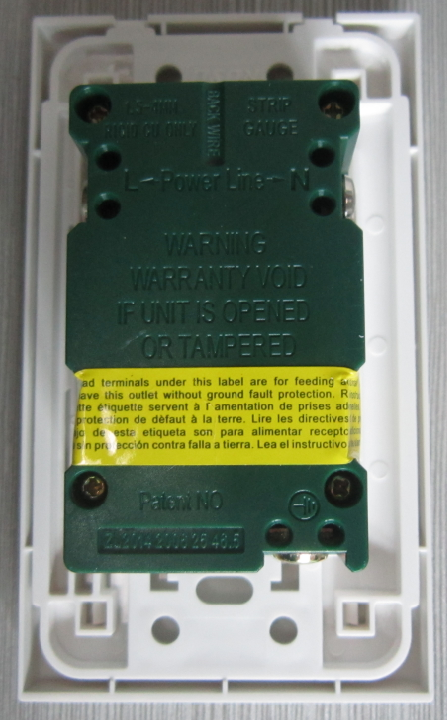

- Back wire and strip gauge indicators
- Terminals for feeding additional outlets
- Patent Number
- 202014-200826-48.5
Compliance & Certifications
Standards Compliance
CECBBSSASOGOSTRoHS
Applications
- Recommended Applications
- Electric Water HeatersRefrigeratorsWashing MachinesKettlesHair DryersPower Tools
