Double Schuko Surface Mount Power Outlet

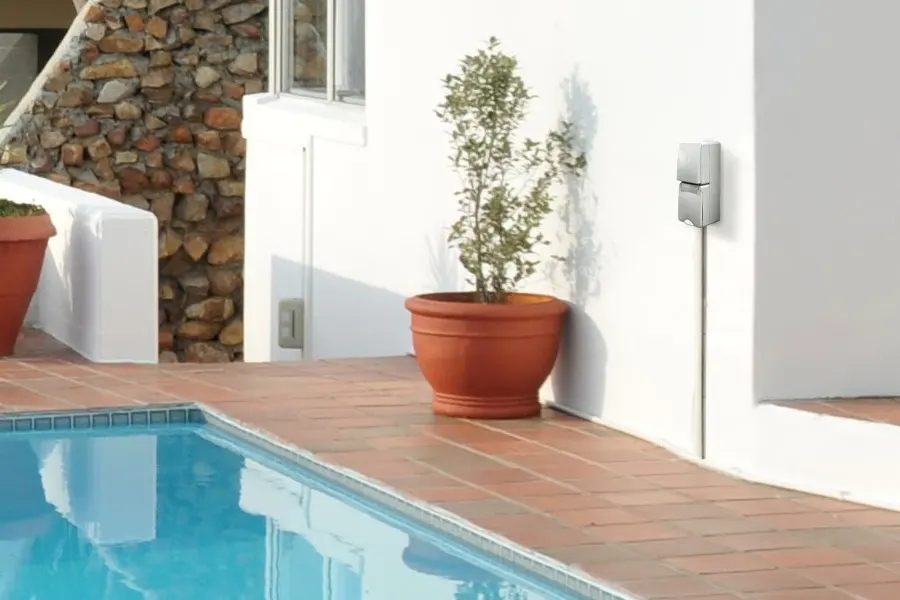

This double Schuko power outlet is designed for surface mounting. It is constructed from PC-UV material for UV resistance and has an IP65 rating for dust and water protection.
Technical Specifications
Overview
High-Performance Surface Mount Solution
This Double Schuko Power Outlet is engineered for demanding environments, featuring an IP65 rating for superior dust and water protection. Constructed from PC-UV material, it effectively resists UV degradation, making it suitable for outdoor applications. The innovative screwless terminal technology and quick-lock structure ensure a fast, secure installation and easy maintenance.
Key Performance Metrics
Electrical Ratings
16 A
Rated Current
250 V
Rated Voltage
65
IP Rating
Technical Specifications
- Product Series
- M65 Series
- Socket Configuration
- Double Schuko (2P+E) Vertical Type
- Network Frequency
- 50/60Hz
Material & Durability
- Materials
- PC-UVTPEPPHalogen-freeFire-resistant
- Fire Resistance
- 850 °C
- Dielectric Strength
- 2000 V
Installation & Maintenance
- Mounting Mode
- Surface Mounted
- Terminal Technology
- Screw-less connection for quick removal
- Locking Mechanism
- 90-degree rotation quick lock
Safety & Compliance
Certifications
TUVCECBRoHS
Safety Features
- Integrated shutters for child protection
- Tamper-resistant system
- Dust proof and water proof (IP65)
- UV resistant housing
Operating Conditions
Temperature Limits
| Condition | Range (°C) |
|---|---|
| Storage | -20 to 50 |
| Operation | -15 to 45 |
Warranty & Reliability
- Mechanical Warranty
- 10 years
- Tested Lifetime
- 40000 cycles
