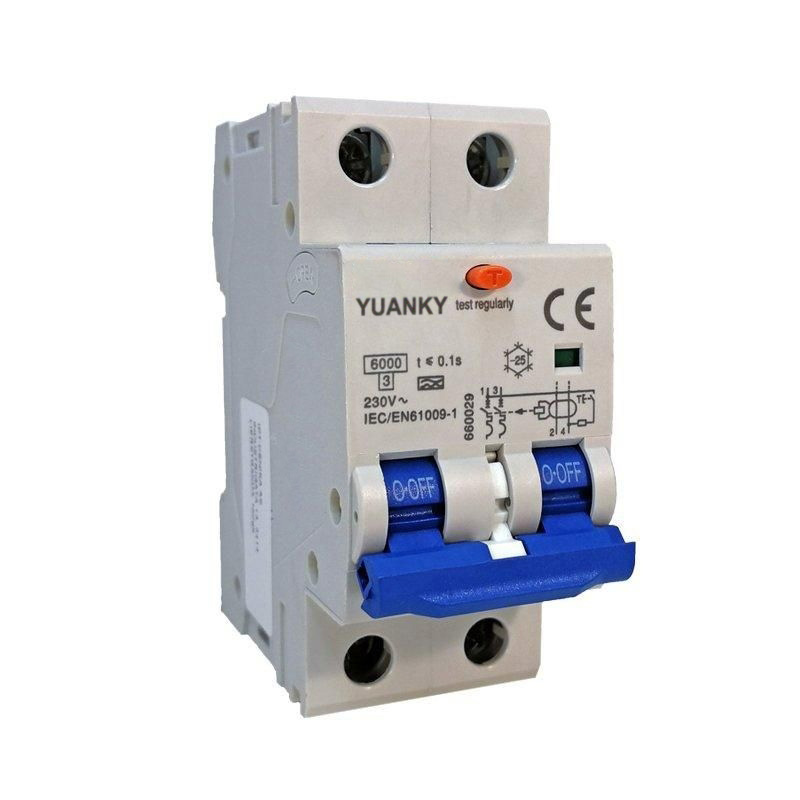

Double Pole Residual Current Circuit Breaker with Overload Protection
This double pole residual current circuit breaker offers overload protection for 230V AC systems. It features a 6000A breaking capacity and complies with IEC/EN61009-1 standards.
Technical Specifications
Product Overview
Professional Electrical Protection
This double pole residual current circuit breaker with overload protection (RCBO) is engineered for reliable electrical safety in both residential and commercial environments. It provides essential protection against both residual currents and circuit overloads in 230V AC systems. Designed for durability and performance, the unit features a 6000A breaking capacity and rapid response times to ensure circuit integrity.
Technical Specifications
- Rated Voltage
- 230 V
- Short Circuit Breaking Capacity
- 6000 A
- Rated Residual Operating Current
- 0.03 A
- Response Time
- ≤0.1s
- Minimum Operating Temperature
- -25 °C
Compliance & Standards
Certifications
CE
- Standards Compliance
- IEC/EN61009-1
Construction & Features
Available Construction Types
- Spliced electronic RCBO (L1+L2, 2 bimetal + 2 coil)
- Electronic & unibody construction RCBO (L1+L2, 2 metal + 1 coil)
- Electromagnetic & unibody construction RCBO (L1+L2)
- Key Features
- Double PoleOverload ProtectionResidual Current ProtectionTest Button
