Double Disc Fertilizer Spreader
This double disc spreader is used for efficient sowing and even distribution of fertilizer. It is suitable for use on farms, pastures, and sloping land.
Technical Specifications
Overview
High-Efficiency Double Disc Spreading
The 2CDRX series double disc spreader is a high-quality, large-scale solution for efficient sowing and fertilization. Designed for versatility, it excels in zero-tillage seeding, pasture rangeland maintenance, and even snow-melting agent distribution. This machine is engineered for rear suspension on 50-100HP tractors, offering excellent maneuverability and uniform scattering across flat arable land, hilly areas, and sloping grasslands.
Key Features
Functional Uses
- Zero-tillage seeding fertilizer application
- Seed and fertilizer mixed seeding
- Snow-melting agent scattering
- Pasture and grassland maintenance
- Application Versatility
- Agricultural LandForestryPastureRangelandSloping LandHilly Areas
Technical Specifications
Model Performance Data
| Model | Capacity (L) | Spreading Width (m) | Weight (kg) | Matched Power (hp) |
|---|---|---|---|---|

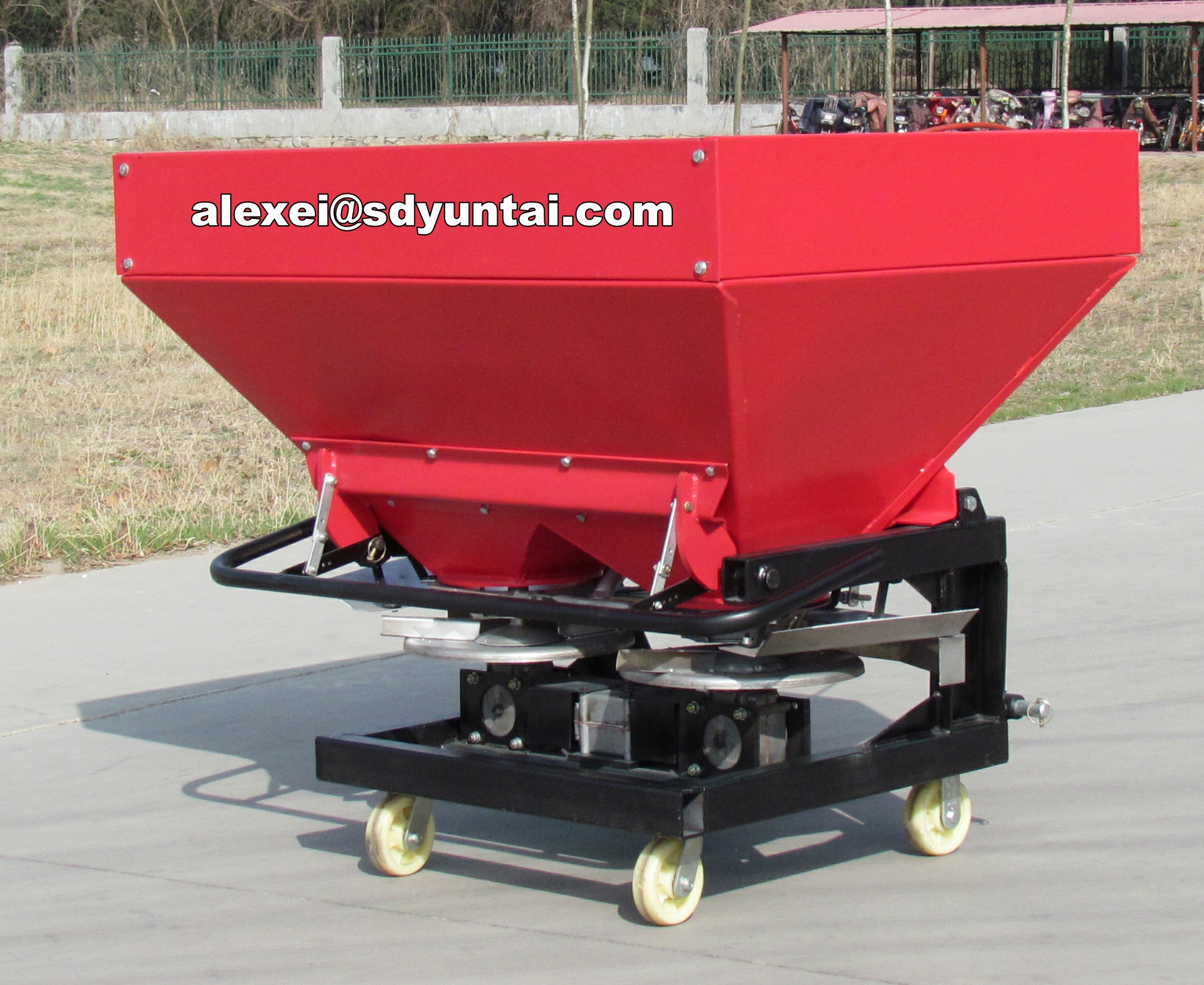

| 2CDRX-800 | 800 | 16-24 (Adjustable) | 320 | 60-80 |
| 2CDRX-1100 | 1,100 | 16-24 (Adjustable) | 445 | 80-100 |
| 2CDRX-1400 | 1,400 | 16-24 (Adjustable) | 470 | 80-120 |
Performance Metrics
Maximum Spreading Width
24 m
Max Width
- Adjustable Width
- Yes
Design & Build
Build Quality
Corrosion ResistantHeavy-Duty Steel FrameHigh-Capacity HopperSimple Structure
- Chassis Design
- Wheeled chassis with four caster wheels for enhanced maneuverability
- Spreading Mechanism

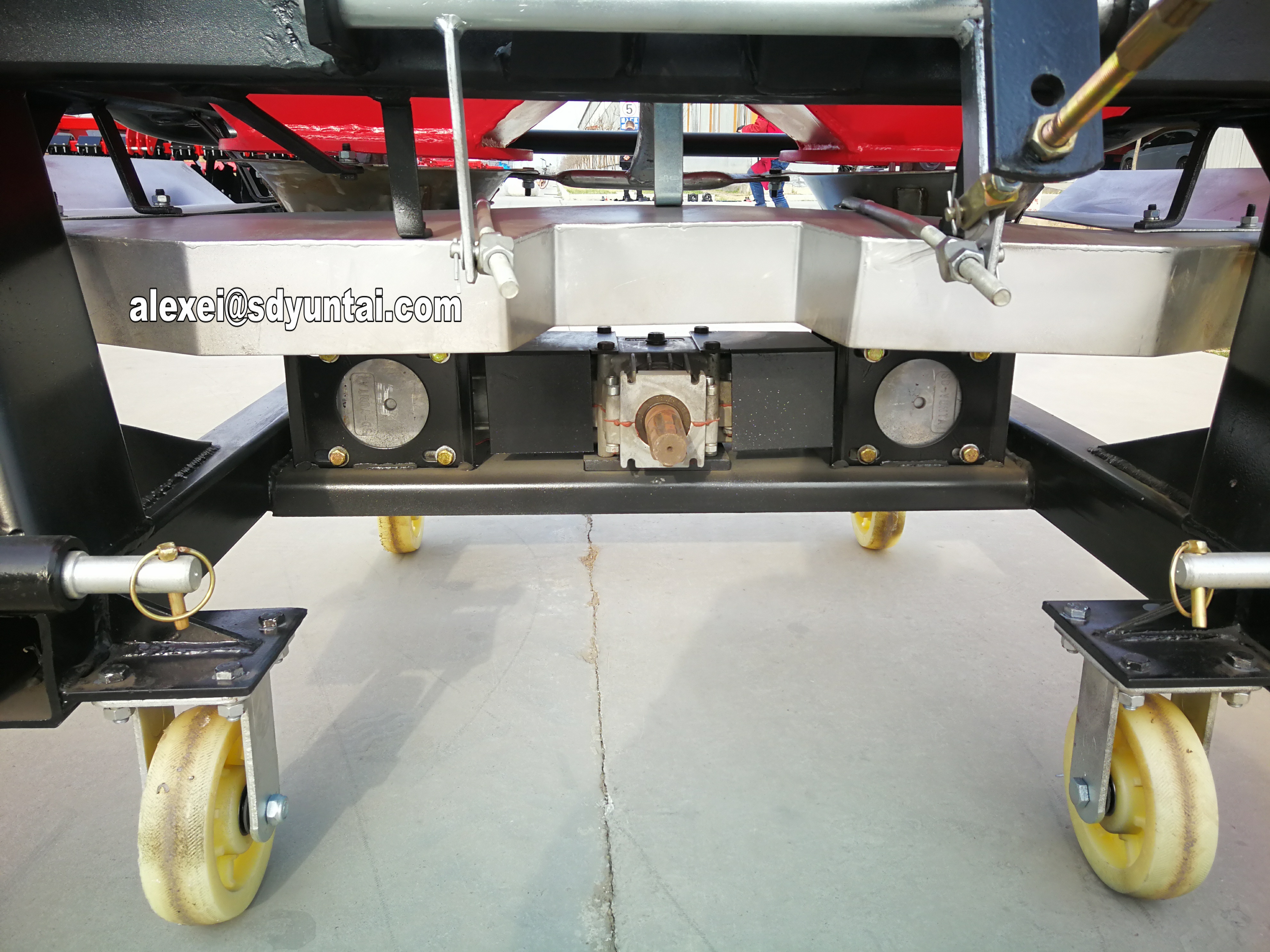

- Double disc system with central gearbox and dual spreading discs
