Distribution System Fuse Cutout
This fuse cutout protects electrical distribution systems from overcurrents and short circuits. It consists of a fuse holder, fuse link, and insulator, suitable for overhead and underground systems.

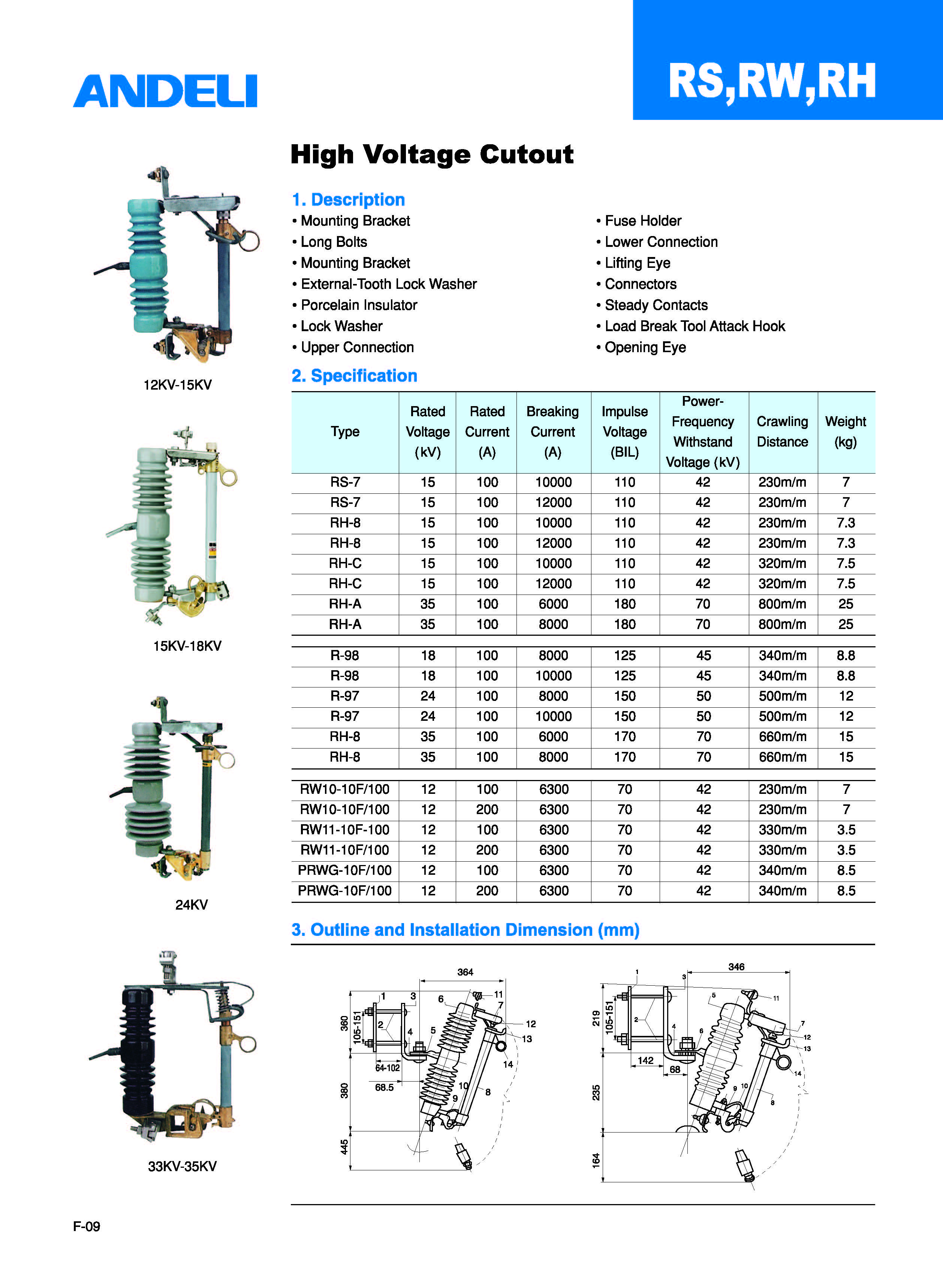

Technical Specifications
Product Overview
Distribution System Protection
The RW Fuse Cutout is a robust protective device engineered for overhead and underground electrical distribution systems. It is designed to safeguard sensitive equipment and distribution lines by effectively interrupting circuits during overcurrent or short-circuit events. Featuring high-quality porcelain insulators and versatile mounting capabilities, these units provide reliable performance in voltage ranges from 12kV up to 35kV.
Key Features
Primary Components
- Mounting Bracket
- Porcelain Insulator
- Fuse Holder
- Steady Contacts
- Load Break Tool Attack Hook
- External-Tooth Lock Washers
- System Compatibility
- 12kV15kV18kV24kV35kV
Technical Specifications
Operating Metrics
| Type | Voltage (kV) | Rated Current (A) | Breaking Current (A) |
|---|---|---|---|
| RS-7 | 15 | 100 | 12,000 |
| RH-8 | 15 | 100 | 12,000 |
| RH-A | 35 | 100 | 8,000 |
| R-98 | 18 | 100 | 10,000 |
| R-97 | 24 | 100 | 10,000 |
