Dirt Bike Wheel Set
This dirt bike wheel set enhances handling and improves acceleration. It features lightweight, durable construction and precision-engineered hubs for optimal performance.
Technical Specifications
Overview

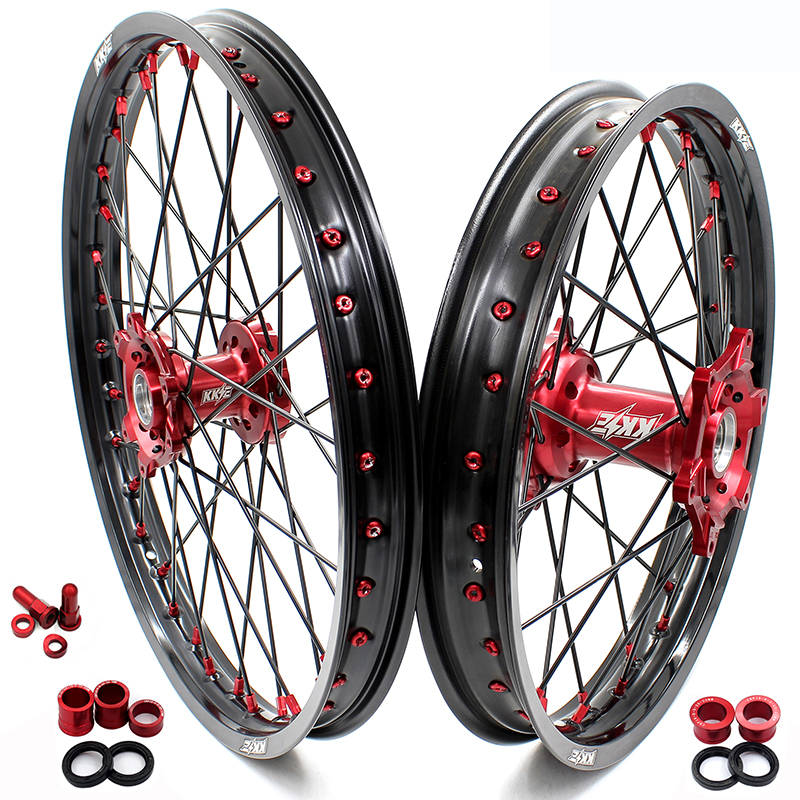

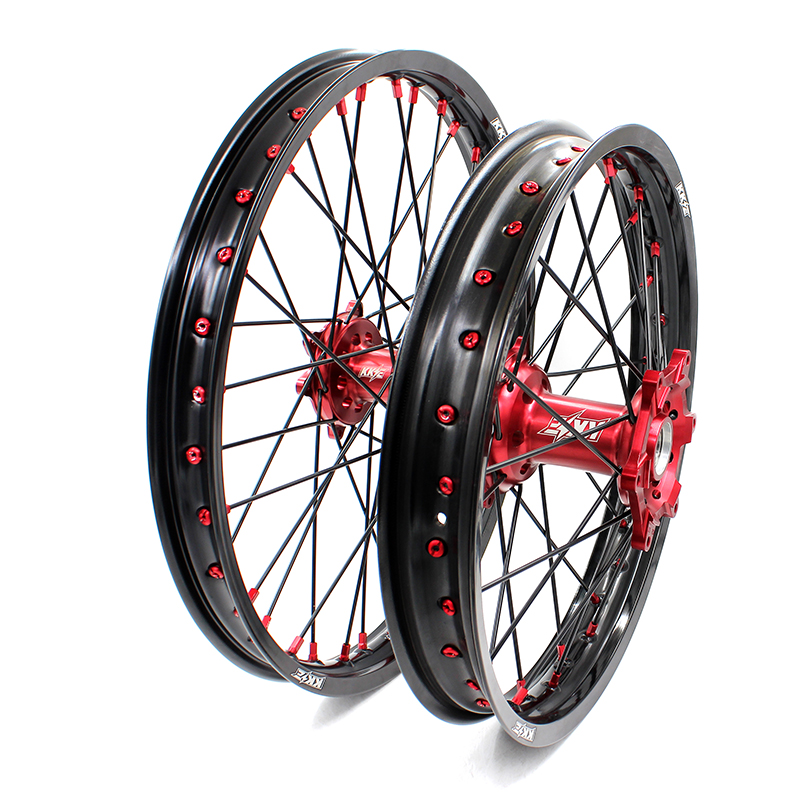

High-Performance Dirt Bike Wheel Set
This premium wheel set is engineered for durability and precision, featuring high-grade 7050-T7 aluminum rims and CNC-machined 6082-T6 aluminum hubs. Designed for off-road performance, the assembly includes high-strength 304 stainless steel spokes and 2014 alloy nipples. Every set comes fully assembled with bearings and seals, ensuring a ready-to-install solution for specific Honda dirt bike models.
Technical Specifications
Available Rim Sizes
| Position | Standard Size | Alternative Sizes |
|---|---|---|
| Front | 1.6 x 21 inch | 1.85 x 19 inch, 2.15 x 19 inch |
| Rear | 2.15 x 19 inch | 2.15 x 18 inch, 1.85 x 19 inch |
- Rim Material
- 7050-T7 Aluminium
- Hub Material
- 6082-T6 Aluminium (CNC Machined)
- Spoke Material
- 304 Stainless Steel
- Nipple Material
- 2014 Alloy
Compatibility
- Compatible Models
- CRF250R 2004-2013CRF450R 2002-2012
Components & Assembly
Included Components
- Assembled Rims
- Spokes
- Hubs
- Bearings
- Seals
- Spacers
Bearing Configuration
2 6904
Front Bearings
3 6905
Rear Bearings
Spacer Diameter
20 mm
Front Spacer
25 mm
Rear Spacer
- Seal Dimensions
- Front: 26x37x7mm, Rear: 32x43x7mm
Finishing
Finish & Color Options
Anodized HubsAnodized RimsElectrophoresis SpokesCustom Colors Available
