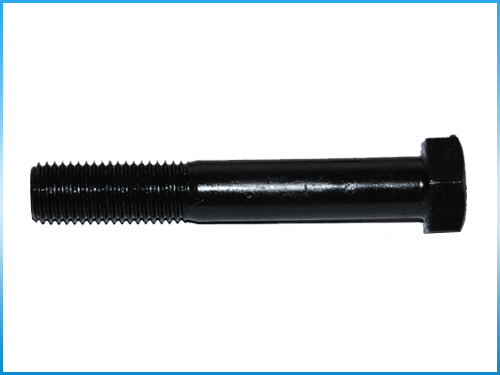

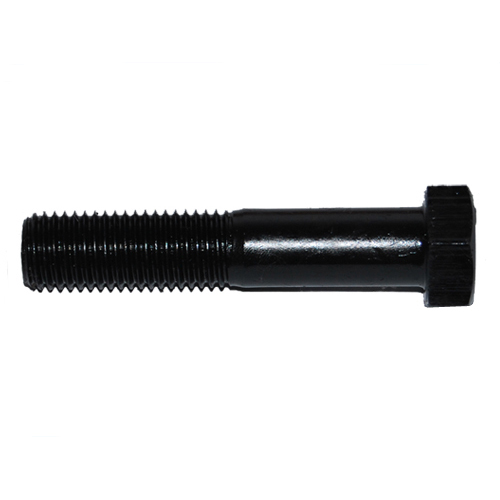

DIN931 Partially Threaded Hex Bolts
These hex bolts are manufactured to DIN931 standards. The partially threaded shank allows for increased shear strength and accurate alignment in machinery, construction, and automotive applications.
Technical Specifications
Overview
DIN931 Partially Threaded Hex Bolts
These high-quality hex bolts are manufactured to DIN931 and ISO4014 standards, offering reliable fastening solutions for demanding industrial environments. Designed with a partially threaded shank for enhanced shear strength and precise alignment, they are suitable for construction, automotive, and machinery applications. Available in various material grades and finishes, these bolts ensure durability and performance across a wide range of project requirements.
Technical Specifications
Grade
8.810.912.9
Finish Options
- Plain
- Black oxidized
- Zinc plate (white, blue, color)
- Hot dip galvanized
- Chrome
- Standards Compliance
- DIN931ISO4014DIN933DIN960DIN961DIN934ISO4017ISO8765ISO8676ISO8673ASTM A325ASTM A194 2HIFI A10
- Material
- Low carbon steel / Alloy steel (35k, 45#, 40Cr, 35CrMoA, 42CrMoA)
- Process
- Cold heading / Hot forging
Dimensions
Available Sizes
8 M
Min Diameter
42 M
Max Diameter
6 mm
Min Length
420 mm
Max Length
Logistics & Supply
- Supply Ability
- 800 tons/month
- Delivery Lead Time
- 7-30 days
- Standard Packaging
- 25kg per carton, 36 cartons per pallet
