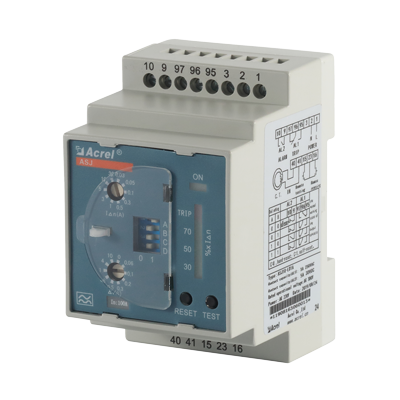

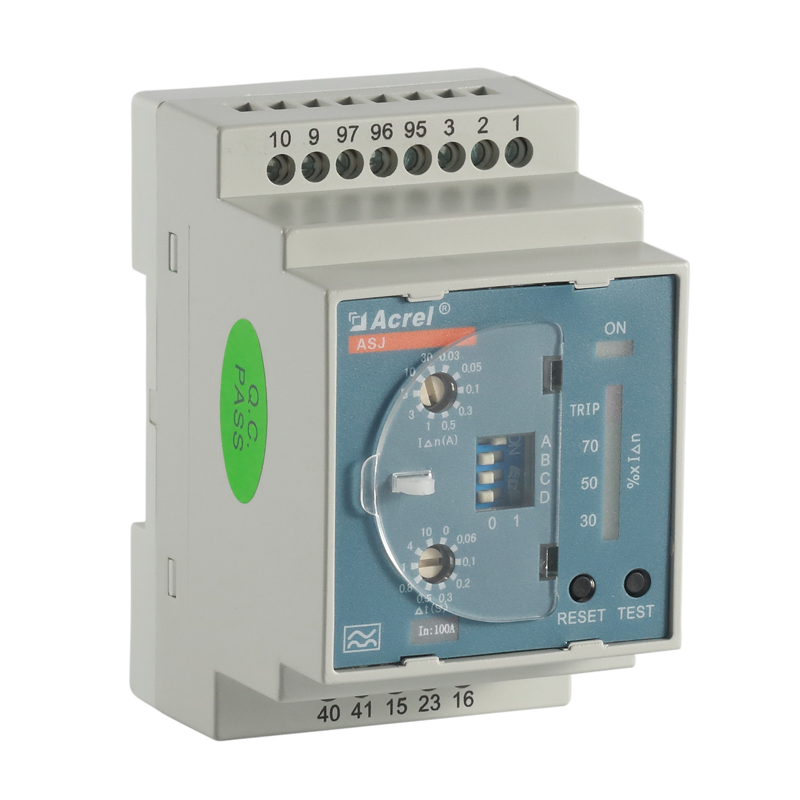

DIN Rail Earth Leakage Relay
This earth leakage relay is designed for DIN rail mounting and A-type after-current measurement. It detects earth leakage faults and can be combined with other devices to form an earth leakage protection system.
Technical Specifications
Overview
Advanced Earth Leakage Protection
This DIN rail-mounted earth leakage relay is designed to provide critical ground fault protection for electrical circuits, preventing equipment damage and mitigating fire risks. It offers precise measurement of A-type leakage current with adjustable sensitivity and time delay settings to suit various industrial and commercial applications. The device features dual relay outputs and supports both local and remote testing and resetting for enhanced operational control.
Technical Specifications
Rated Input Current
100 A
Input Current
- Adjustable Leakage Current (IΔn)
- 0.03A to 10A
- Adjustable Trip Time (Δt)
- 0.06s to 1s
- Operating Frequency
- 50 Hz
- Auxiliary Power Supply
- AC110VAC220VDC85-270V
- Power Consumption
- 5 W
Features
Key Features
- A-type leakage current measurement
- Streamer display of current percentage
- Adjustable rated residual action current
- Adjustable non-driving time limitation
- Two-pair relay output
- Local and remote test/reset capability
Installation
Compatible Systems
TT SystemTN-S System
- Mounting Style
- DIN Rail
