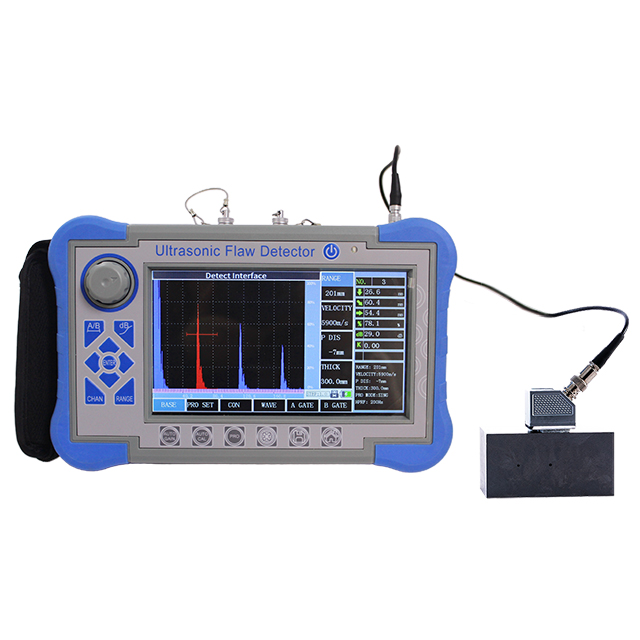

Digital Ultrasonic Flaw Detector with Touch Screen
This digital ultrasonic flaw detector is equipped with a touch screen for easy operation. It quickly detects, locates, and diagnoses defects like cracks, pores, and inclusions in materials without causing damage.
Technical Specifications
Overview
Advanced Ultrasonic Inspection
This Digital Ultrasonic Flaw Detector is an advanced, touch-screen equipped instrument designed for non-destructive testing (NDT). It enables rapid and accurate detection, location, and evaluation of internal defects such as cracks, pores, and inclusions in materials. Built for versatility, it is an essential tool for industries including aerospace, petrochemical, automotive, and steel structure manufacturing.
Technical Specifications
Ingress Protection
IP65
- Display
- 7-inch TFT color screen
- Resolution
- 800 x 480 pixels
- Independent Channels
- 500
- Battery Life
- 10 hours
Key Features
Calibration Features
- One-button auto calibration
- Automatic test probe P Delay
- Automatic test probe K value
- Automatic test probe X value
- Velocity calibration
Data & Reporting
- Store and playback 500 A-scan waves
- PC communication software
- Word file report output
- Real-time clock recording
- Supported Curves
- DACAVGTCG
Applications
- Suitable Industries
- Electric PowerPetrochemicalBoiler & Pressure VesselSteel StructureMilitaryAerospaceRailwayAutomotive
