Technical Specifications
Overview

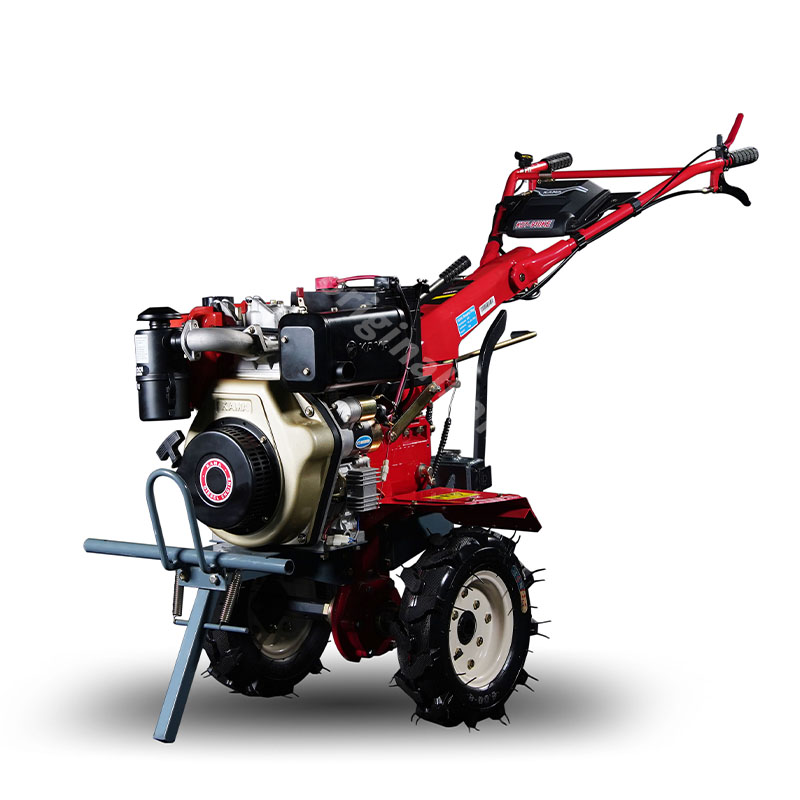

Versatile Diesel Rotary Tiller
This diesel-powered rotary tiller is designed for high-efficiency soil cultivation across diverse terrains, including plains, mountains, and hills. Featuring a robust air-cooled diesel engine and splined direct transmission, it offers a compact, lightweight, and maneuverable solution for deep and shallow rotation, weeding, and soil crushing. Its reliable design is ideal for small to medium-sized agricultural operations, providing consistent performance for various farming needs.

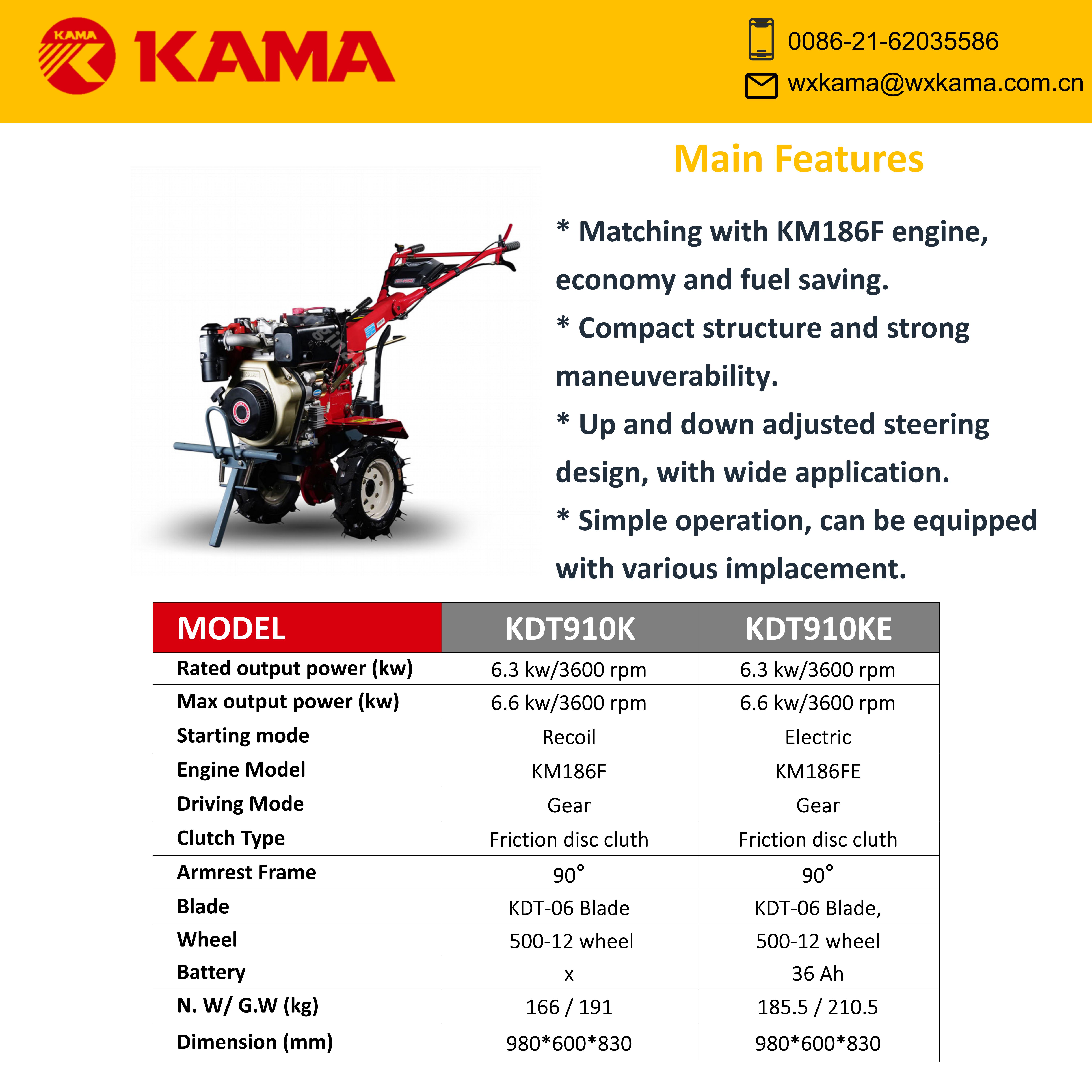

Technical Specifications
- Engine Model
- KM186FE
- Starting Mode
- Electric
- Clutch Type
- Friction disc
Performance Metrics
Power Output
6.3 kW
Rated Power
6.6 kW
Max Power
- Rated Speed
- 3600 rpm
Physical Dimensions
Machine Weight
185.5 kg
Net Weight
210.5 kg
Gross Weight
- Dimensions (L x W x H)
- 980 x 600 x 830 mm
Equipment & Accessories
Included Components
- KDT-06 Blade
- 500-12 Wheel
- 36 Ah Battery
Applications
- Suitable Applications
- Deep RotationShallow RotationPloughingPaddy FieldsOrchardsVegetable FieldsWeedingSoil Crushing
