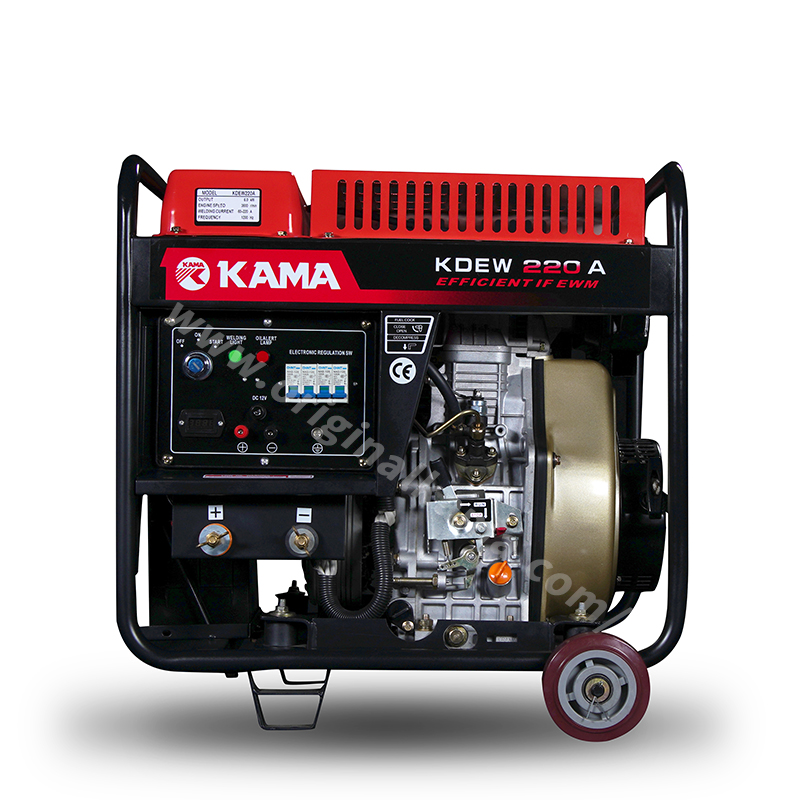

Diesel Engine Welding Machine
This welding machine uses AC current output from a medium frequency permanent magnet alternator for direct welding, removing the need for rectifier output. It provides stable voltage and current output for consistent welding performance.
Technical Specifications
Overview
High-Efficiency Diesel Welding Solution
This diesel-powered welding machine is engineered for professional performance and portability. It utilizes an advanced medium frequency permanent magnet alternator integrated directly into the engine flywheel, resulting in a lighter and more compact generator set. The system delivers efficient power with electronic regulation, ensuring stable welding current for consistent, high-quality results across various applications.
Technical Specifications
- Engine Model
- KM192F
- Engine Type
- Single cylinder, air-cooled, four-stroke
- Rated Rotation Speed
- 3600 RPM
- Fuel Capacity
- 9.5 L
Welding Performance
Welding Current Range
60 A
Min Current
220 A
Max Current
- Compatible Welding Rods
- 2.0mm - 6.0mm
- Adjusting Gears
- 4
Electrical Output
- Rated Frequency
- 1200 Hz
- Rated Power
- 6 kW
- Auxiliary Output
- DC 12V
Features
Certifications
CE
- Key Features
- Electronic RegulationOil Alert SystemPortable DesignMedium Frequency Alternator
