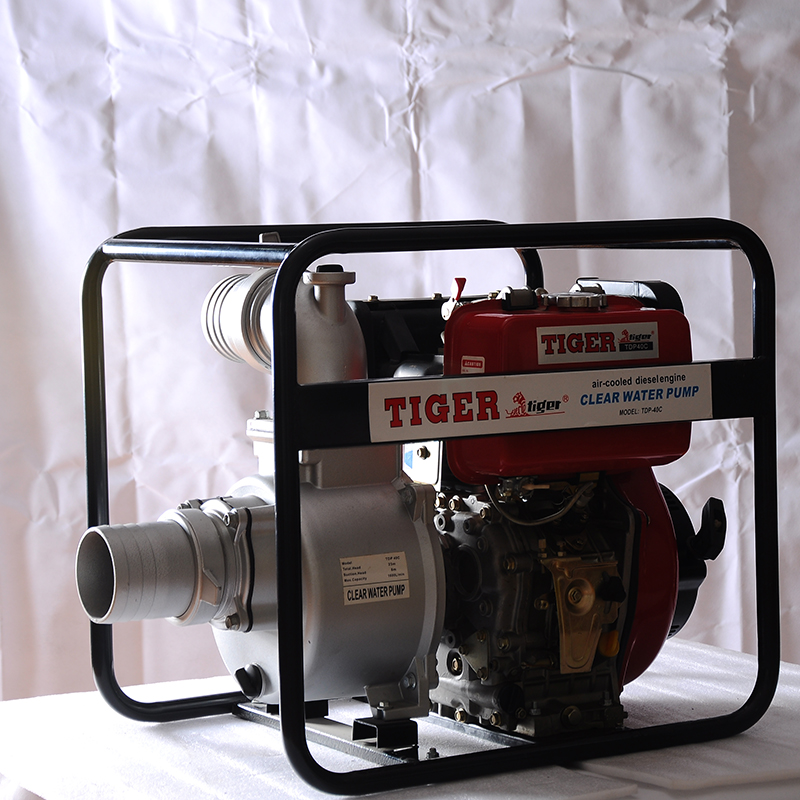

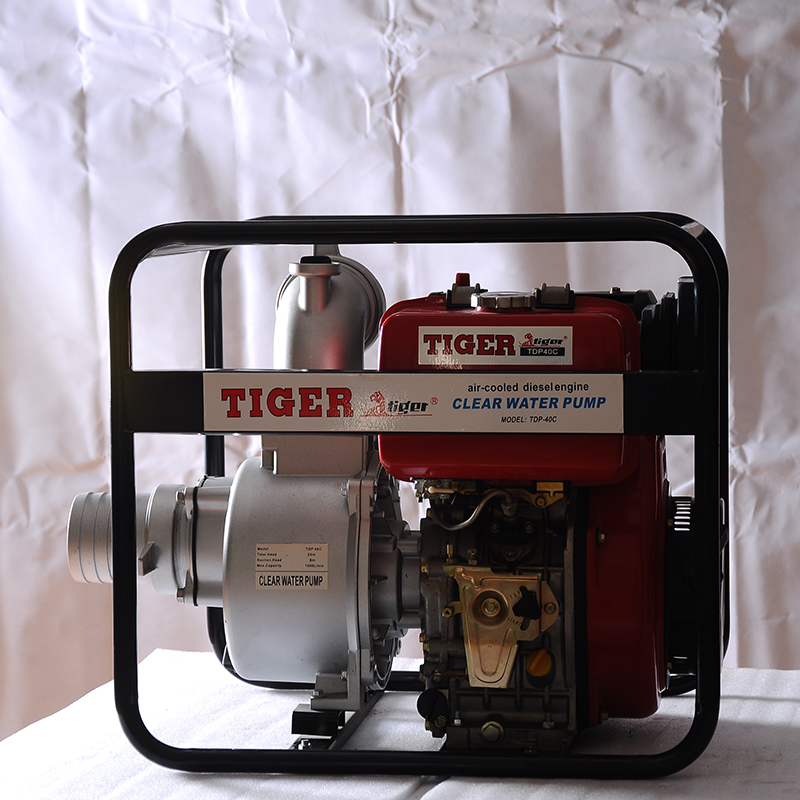

Diesel Engine Water Pump
This diesel engine water pump is engineered for efficient coolant circulation. Its robust design ensures reliable performance in demanding environments, making it suitable for various applications.
Technical Specifications
Product Overview
High-Performance Diesel Water Pump
This diesel-powered water pump is engineered for high-volume fluid transfer, making it an ideal solution for irrigation, construction sites, and emergency water removal. Powered by a robust 4-stroke, air-cooled engine, this unit delivers consistent and reliable performance in demanding environments. Its durable construction and efficient design ensure long-lasting operation and optimal fuel management for professional applications.
Performance Metrics
Key Performance Indicators
1,600 L/min
Max Capacity
23 m
Total Lift
8 m
Max Suction
100 mm
Inlet/Outlet Diameter
Engine Specifications
Engine Configuration
| Feature | Specification |
|---|---|
| Engine Model | TD186F |
| Engine Type | Vertical, single cylinder, 4-stroke, air-cooling |
| Max Output | 9.0 HP |
| Displacement | 406 cc |
| Ignition System | Direct injection |
| Starting System | Recoil |
Technical Data
Capacities
- Fuel Tank Capacity: 5.5 L
- Oil Capacity: 1.65 L
Logistics and Packaging
Shipping and Packaging
| Parameter | Value |
|---|---|
| Gross Weight | 71.3 kg |
| Dimensions (L x W x H) | 655 x 500 x 610 mm |
| 20' FCL Load | 118 pcs |
