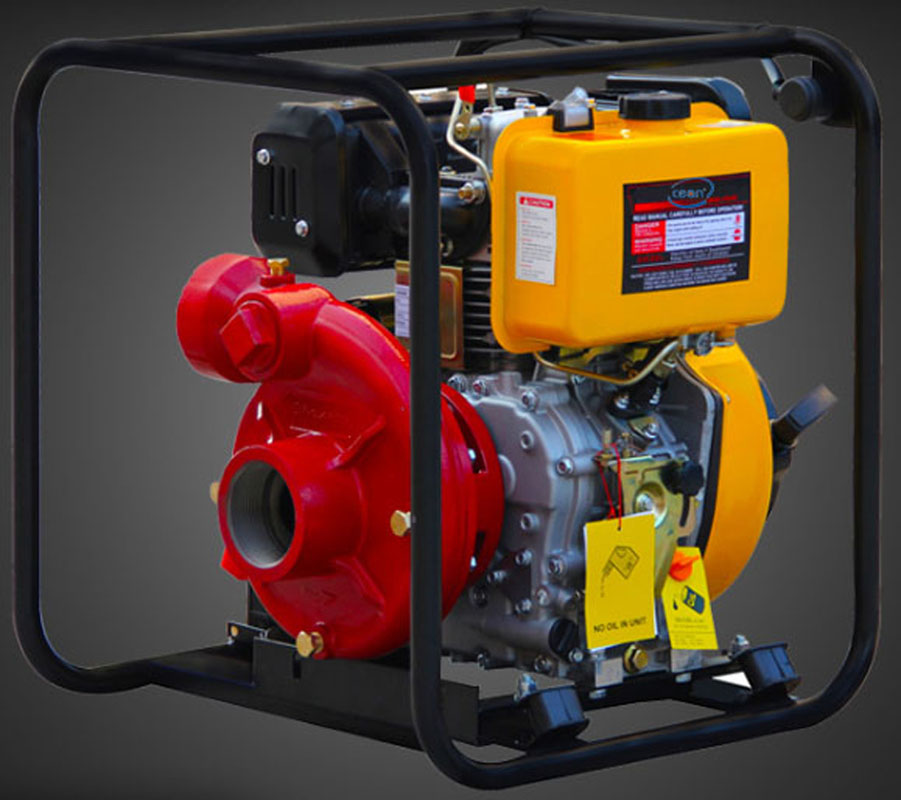

Diesel Engine High Pressure Water Pump
This 1.5-4 inch cast iron high pressure water pump is driven by an air-cooled diesel engine. The pump provides high lift, making it suitable for irrigation and washing applications.
Technical Specifications
Product Overview
High-Performance Diesel Water Pump
This 1.5-4 inch cast iron high-pressure water pump is driven by a robust air-cooled diesel engine, specifically designed for high-lift applications such as agricultural irrigation and industrial washing. Built with durable raw materials, it offers superior discharge pressure, high efficiency, and stable operation in demanding environments. It is a reliable solution for professional buyers in South America and beyond, particularly for fire fighting, car washing, and large-scale irrigation projects.
Performance Metrics
Key Performance Metrics
90 m
Max Head
120 m³/h
Max Flow Rate
10 bar
Max Pressure
8 m
Suction Height
Technical Specifications

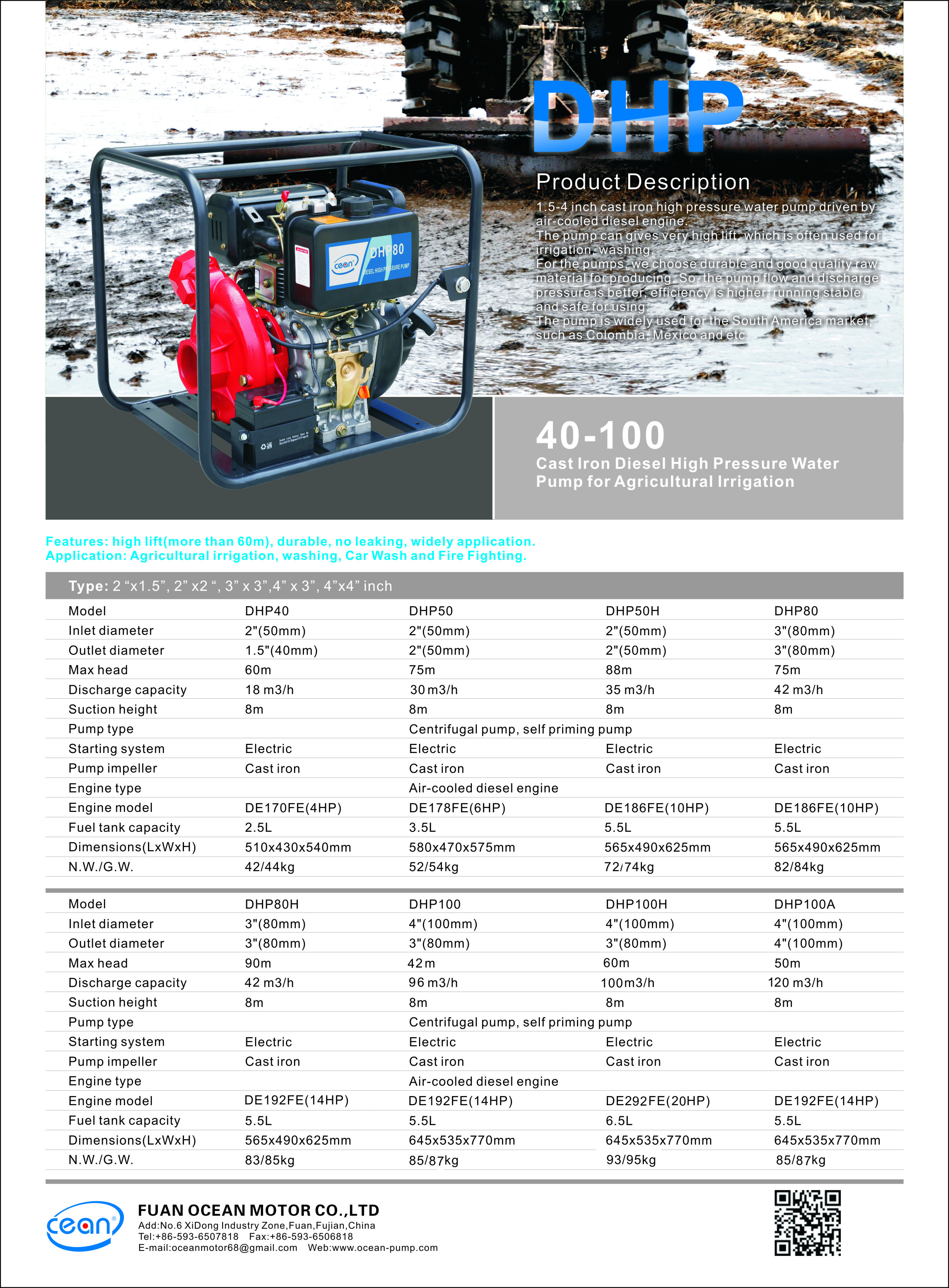

Model Specifications Table
| Model | Inlet/Outlet | Engine | Max Head | Capacity |
|---|---|---|---|---|
| DHP40 | 2" x 1.5" | 4HP (DE170FE) | 60m | 18 m³/h |
| DHP50 | 2" x 2" | 6HP (DE178FE) | 75m | 30 m³/h |
| DHP80 | 3" x 3" | 10HP (DE186FE) | 75m | 42 m³/h |
| DHP100 | 4" x 3" | 14HP (DE192FE) | 42m | 96 m³/h |
| DHP100A | 4" x 4" | 20HP (DE292FE) | 50m | 120 m³/h |
Construction & Materials
Build Quality
- Pump Body: Heavy-duty Cast Iron
- Impeller: Durable Cast Iron
- Shaft: High-strength Steel
- Mechanical Seal: Ceramic steatite / metalized carbon
Operating Conditions
Operating Limitations
- Maximum ambient temperature: 40°C
- Maximum fluid temperature: 40°C
- Duty Cycle: Continuously rated
- Protection Class: IP44 / IP54
Engine Details
- Engine Features
- Air-CooledDiesel PoweredElectric StartHigh TorqueFuel Efficient
Applications
Recommended Applications
Agricultural IrrigationCar WashingFire FightingConstruction DewateringEmergency Water Supply
