Diesel Engine Firefighting Pump
This single-stage centrifugal pump is close-coupled with an air-cooled diesel engine, featuring both electric and recoil starting options. The pump casing includes axial suction and radial delivery on top.
Technical Specifications
Product Overview
High-Performance Firefighting Solution
This single-stage centrifugal pump is engineered for reliable water delivery in critical applications. It features a close-coupled design with an air-cooled diesel engine, offering both electric and recoil starting options for versatility. Built for durability and consistent performance, it is an ideal choice for fire suppression, irrigation, and demanding water transfer tasks.
Operating Limitations
- Max Ambient Temperature
- 40 ℃
- Max Fluid Temperature
- 40 ℃
- Max Pressure
- 10 bar
Construction Features
Protection Class
IP44IP54
- Pump Body
- Cast Iron
- Impeller
- Brass
- Shaft
- Steel
- Mechanical Seal
- Ceramic steatite/metalized carbon
- Duty
- Continuously rated

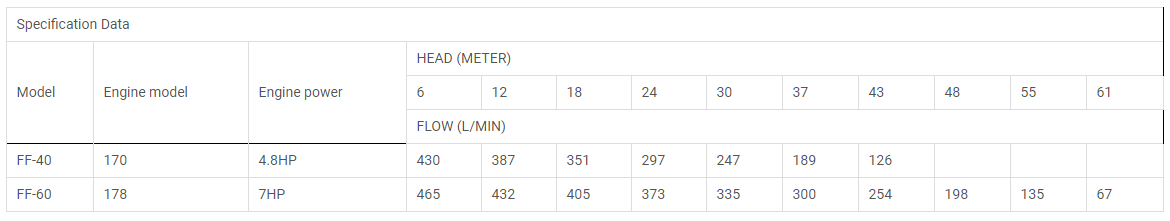

Performance Data
Flow Rate vs Head
| Model | Engine Power | Head 6m (L/min) | Head 12m (L/min) | Head 18m (L/min) | Head 24m (L/min) | Head 30m (L/min) | Head 37m (L/min) | Head 43m (L/min) |
|---|---|---|---|---|---|---|---|---|
| FF-40 | 4.8HP | 430 | 387 | 351 | 297 | 247 | 189 | 126 |
| FF-60 | 7HP | 465 | 432 | 405 | 373 | 335 | 300 | 254 |
