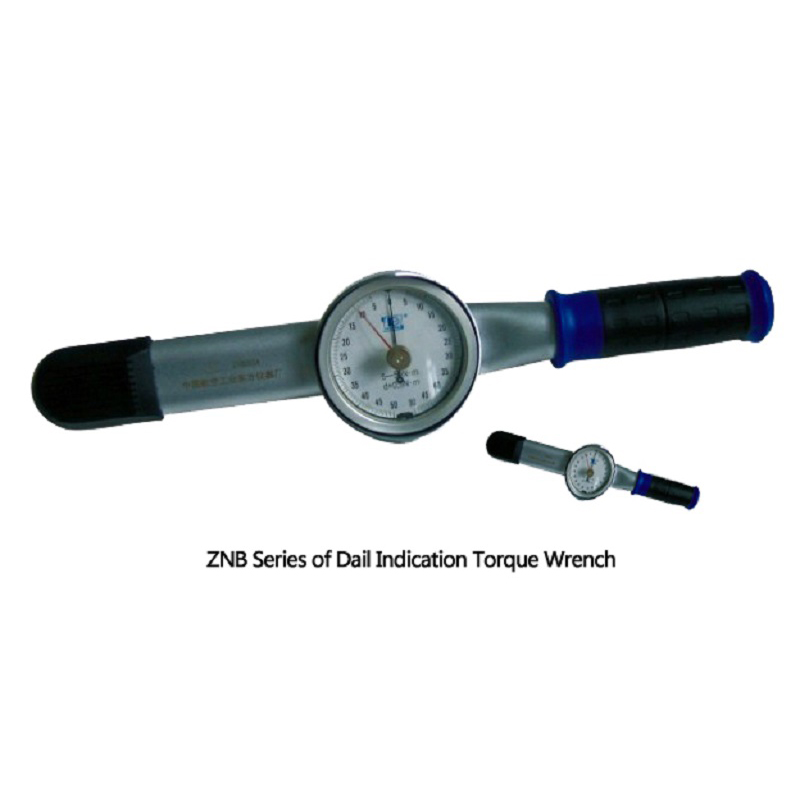

Dial Indicating Torque Wrench
This dial indicating torque wrench is designed for accurately tightening fasteners to a specified torque. The tool features a clear dial indicator that displays the applied torque in real-time.
Technical Specifications
Product Overview
Precision Torque Control
The ZNB series dial indication torque wrench is a next-generation precision measuring tool developed with military-grade technology. Designed for critical fastening applications, it utilizes a pointer and dial mechanism to accurately indicate and remember torque values. Its robust construction ensures reliable performance in demanding environments such as aerospace, automotive manufacturing, and precision machinery assembly.
- Primary Applications
- AerospaceAviationShipbuildingAutomotivePrecision MachineryInternal Combustion Engines
Technical Specifications
Model Specifications
| Model | Torque Range (N.m) | Length (mm) | Drive Size (mm) | Weight (kg) |
|---|---|---|---|---|
| ZNB6A | 1-6 | 225 | 6.3 | 0.4 |
| ZNB12A | 2-12 | 225 | 6.3 | 0.4 |
| ZNB25A | 5-25 | 250 | 10 | 0.4 |
| ZNB50A | 10-50 | 332 | 10 | 0.6 |
| ZNB100A | 20-100 | 380 | 12.5 | 0.7 |
| ZNB200A | 40-200 | 470 | 12.5 | 1 |
| ZNB280A | 50-280 | 690 | 20 | 1.65 |
| ZNB420A | 80-420 | 890 | 20 | 2.5 |
| ZNB560A | 100-560 | 1,100 | 20 | 4 |
| ZNB700A | 140-700 | 1,258 | 20 | 5.5 |
| ZNB850A | 150-850 | 1,360 | 25 | 6.1 |
| ZNB1000A | 200-1000 | 1,490 | 25 | 6.4 |
Key Features
Key Features
- High-accuracy dial indication
- Built-in memory mechanism for torque value retention
- Durable construction with military-grade technology
- Simple operation for professional use
