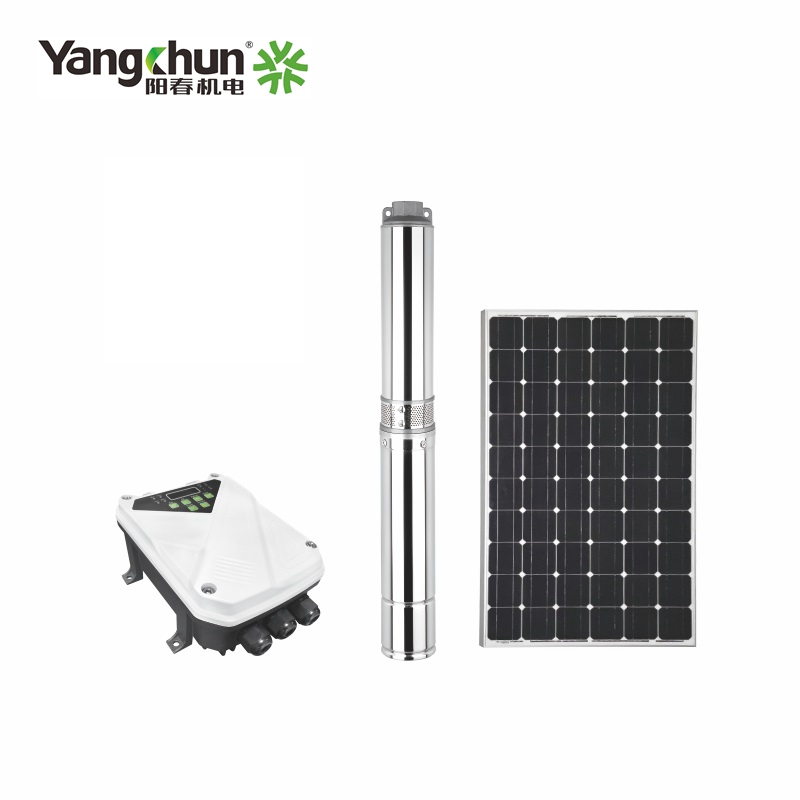

DC Solar Water Pump, 4 inch, 8T/h
This 4-inch DC solar water pump delivers up to 8 tons of water per hour. It is ideal for agricultural, irrigation, and domestic water supply applications.
Technical Specifications
Overview
High-Efficiency Solar Water Solutions
This 4-inch DC solar submersible pump is designed for sustainable water management in remote locations where grid power is unavailable. Utilizing a high-efficiency permanent magnet brushless motor powered directly by solar photovoltaic arrays, it delivers a maximum flow rate of 8m³/h. It is an ideal solution for agricultural irrigation, livestock watering, and domestic water supply applications.
Key Features
Performance Highlights
4 inch
Pump Diameter
8 m³/h
Max Flow Rate
3,600 r/min
Rated Speed
Intelligent Control
Safety & Protection Functions
- Under-voltage protection to safeguard battery life
- Overvoltage protection with automatic power cutoff
- Water shortage protection (auto-stop after 3 minutes)
- Automatic overload protection (auto-stop after 2 minutes)
- Automatic card machine protection with reverse rotation
- High-temperature protection for abnormal thermal conditions
Technical Specifications
Model Performance Data
| Model | Power (kW) | Voltage (VDC) | Max Head (m) |
|---|---|---|---|
| 4TY8-16/4-750W/72V | 0.75 | 72 | 36 |
| 4TY8-20/5-900W/96V | 0.9 | 96 | 43 |
| 4TY8-29/7-1200W/110V | 1.2 | 110 | 59 |
| 4TY8-37/10-1500W/110V | 1.5 | 110 | 76 |
| 4TY8-57/14-1500W/110V | 1.5 | 110 | 103 |
System Components
- Motor Technology
- Permanent magnet brushless motor
- Commutation Method
- Sine wave start commutation
Applications
- Ideal For
- AgricultureIrrigationDomestic Water SupplyRemote LocationsLivestock
