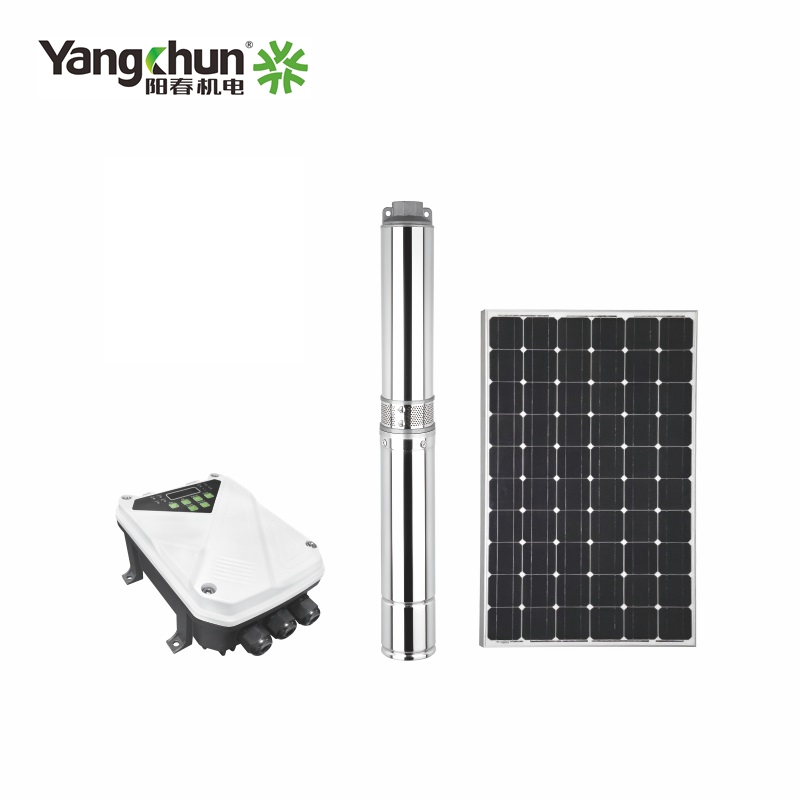

DC Solar Water Pump 4" 2T/h
This DC solar water pump is designed for water pumping applications using solar energy. It provides a sustainable and cost-effective solution for water management, suitable for irrigation, livestock watering, and domestic water supply.
Technical Specifications
Overview
High-Efficiency DC Solar Pumping Solution
This 4-inch DC solar water pump is a high-efficiency solution powered directly by solar photovoltaic arrays, featuring a permanent magnet brushless motor for optimal performance. Designed for durability and corrosion resistance with stainless steel construction, it is ideal for agricultural irrigation, livestock watering, and domestic water supply in remote areas. The system includes an intelligent controller that automatically adjusts voltage and current to maximize efficiency while providing comprehensive protection for a long service life.
Key Features
- Motor Technology
- Permanent magnet brushless motor
- Material
- Stainless steel
- Control System
- Sine wave start commutation with automatic output adjustment
Performance Data
Power Range
- Maximum Head
- 162 m
- Maximum Flow Rate
- 3.5 m³/h
- Rated Speed
- 3600 r/min
Intelligent Protection
Controller Protection Functions
- Under-voltage protection (prevents battery over-discharge)
- Overvoltage protection (automatic power cut-off)
- Water shortage protection (3-minute detection auto-stop)
- Automatic overload protection (2-minute auto-stop)
- Automatic card machine protection (reverse run and restart)
- Automatic high-temperature protection

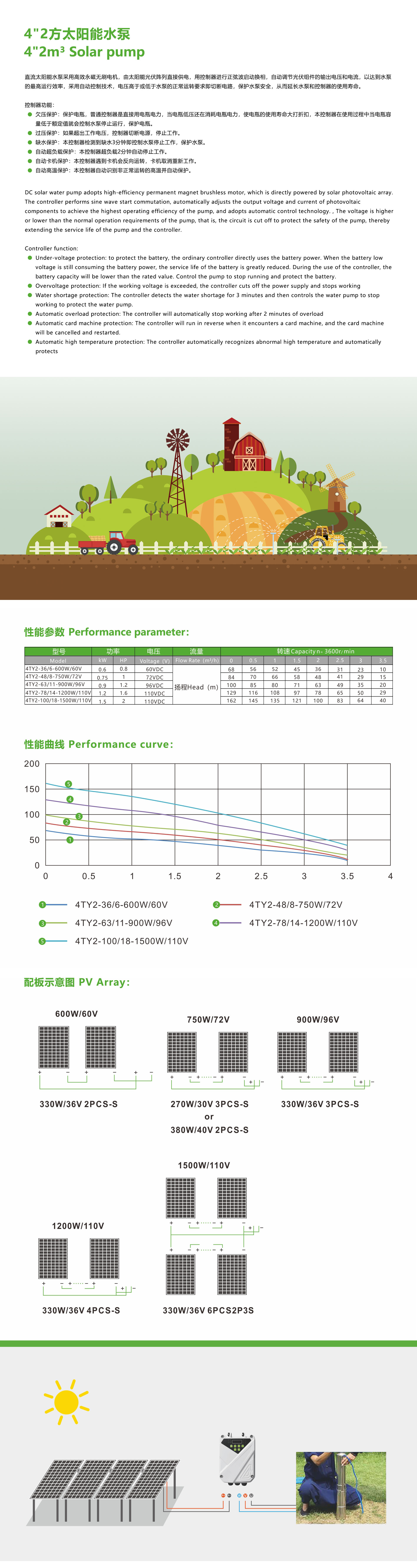

Technical Specifications
Model Performance Comparison
| Model | Power (kW) | Voltage (VDC) | Max Head (m) |
|---|---|---|---|
| 4TY2-36/6-600W/60V | 0.6 | 60 | 68 |
| 4TY2-48/8-750W/72V | 0.75 | 72 | 84 |
| 4TY2-63/11-900W/96V | 0.9 | 96 | 100 |
| 4TY2-78/14-1200W/110V | 1.2 | 110 | 129 |
| 4TY2-100/18-1500W/110V | 1.5 | 110 | 162 |
Applications
- Recommended Uses
- Agricultural IrrigationLivestock WateringDomestic Water SupplyRemote Area Water ManagementPhotovoltaic Systems
