DC Motor for Vacuum Cleaners
This DC motor features advanced design and is suitable for automated machinery. It is engineered for low noise, improved structure, and extended operational life.
Technical Specifications
Overview
High-Performance Brushless DC Motors
These advanced brushless DC motors are engineered for reliability and high-volume performance in demanding applications. Featuring a low-noise, durable structure produced through automated manufacturing lines, they offer consistent quality and efficiency. Designed for versatility, these motors are ideal for vacuum cleaners, wireless lithium devices, disinfectant sprayers, and ULV fogging machines.
Technical Specifications
Key Performance Metrics
5,000 hours
Life Expectancy
35 %
Efficiency
16 kPa
Max Vacuum Pressure
10.5 dm³/s
Max Flow Rate
Operating Ranges
- Voltage: 7.2V - 22.2V
- Input Power: 45W - 150W
- Speed: 70,000 - 80,000 RPM
- Vacuum Degree: ≥3 kPa - ≥9.5 kPa

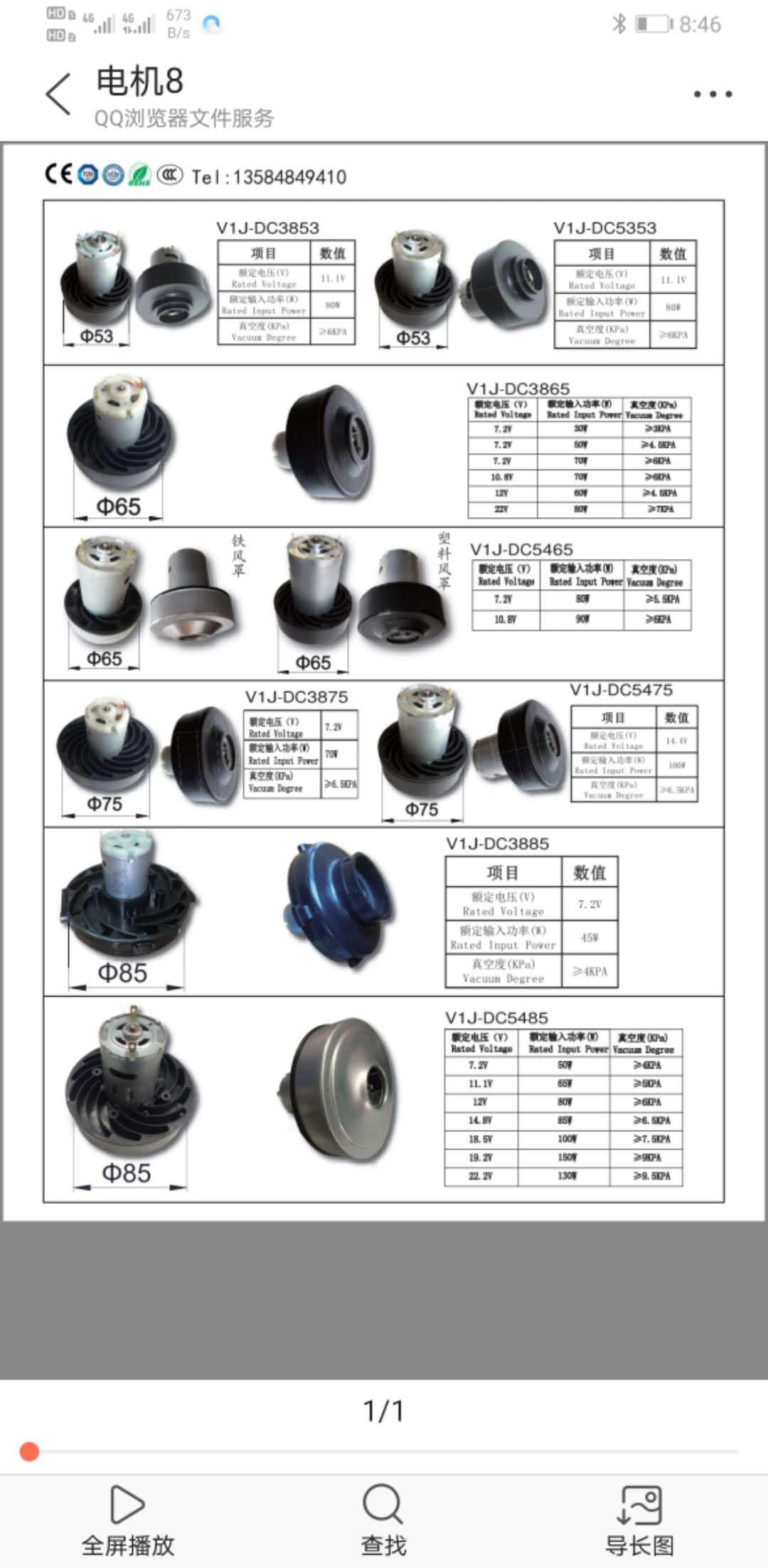

Available Model Diameters
Φ53Φ65Φ75Φ85
Compatibility & Applications
- Suitable Applications
- Vacuum CleanersWireless Lithium VacuumsHand DryersDisinfectant SprayersULV Fogging Machines
