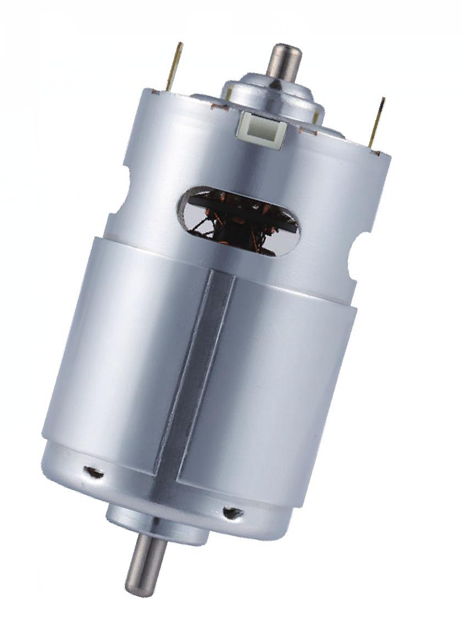

DC Motor for Sprayers
This DC motor is designed for sprayer applications. It features robust construction, efficient power consumption, and reliable operation.
Technical Specifications
Product Overview
High-Performance DC Motors for Sprayers
This range of high-performance DC motors is specifically engineered for professional-grade sprayer applications, offering robust construction and efficient energy consumption. These units deliver reliable and consistent operation, making them an ideal solution for demanding agricultural and industrial spraying environments. With multiple voltage configurations available, these motors are designed to ensure an extended operational lifespan and optimal functional performance.
Key Features
- Available Models
- 775-3559775-6027SF775-8513SF775-9009F
Technical Specifications
Performance Matrix
| Model | Nominal Voltage | No-Load Speed (rpm) | Max Efficiency (%) |
|---|---|---|---|
| 775-3559 | 24.0V | 7,000 | 72 |
| 775-6027SF | 36.0V | 21,500 | 71 |
| 775-8513SF | 18.0V | 21,000 | 79 |
| 775-9009F | 12.0V | 21,000 | 77 |
Service & Customization
Customization & Inquiries
- Custom output shaft length
- Adjustable performance parameters
- EMC solutions available upon request
