DC Motor for Central Locking Systems
This DC motor is engineered for central locking systems in vehicles. It provides efficient and reliable actuation for automotive security applications.
Technical Specifications
Overview
High-Efficiency Central Locking Actuator Motor

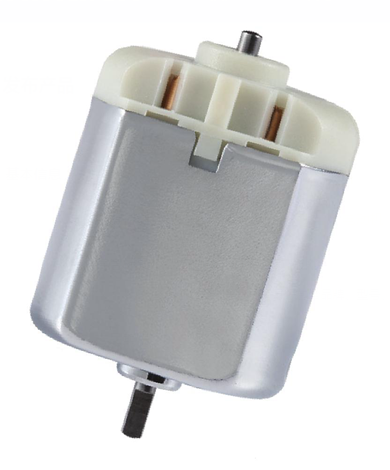

This compact carbon-brush DC motor is engineered specifically for automotive central locking systems and security applications. Featuring a robust metal housing and durable plastic end cap, it ensures reliable actuation and long-term performance. The design includes an integrated PTC thermistor for essential overload protection, making it a safe and efficient choice for demanding automotive environments.

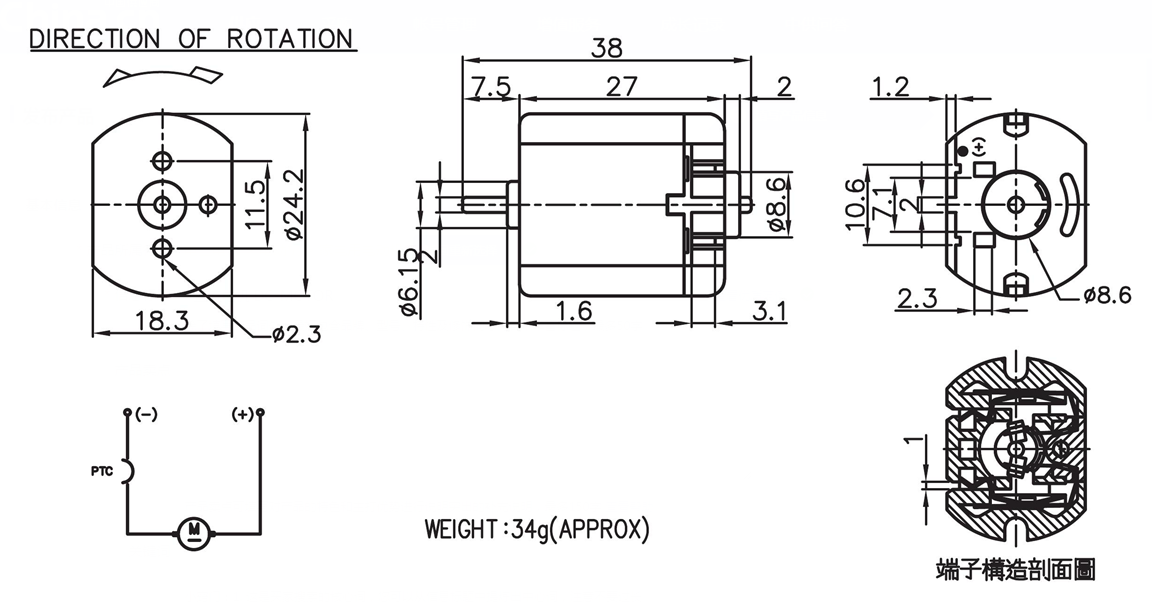

Physical Dimensions
- Motor Length
- 38 mm
- Motor Diameter
- 24.2 mm
- Shaft Diameter
- 6.15 mm
- Approximate Weight
- 34 g
Mounting & Connectivity
- Mounting Hole Diameter
- 2.3 mm
- Mounting Hole Spacing
- 18.3 mm
- Terminal Spacing
- 2.3 mm
Technical Features
- Protection Features
- PTC ThermistorOverload Protection
- Motor Type
- Carbon-brush DC motor
Performance Data
Available Motor Models
| Model | Voltage |
|---|---|
| DC-260S-19145-N | 8.4V |
| DC-260S-20140-N | 12.0V |
| DC-260ST-12300-N | 12.0V |
| DC-260ST-16240-N | 12.0V |
