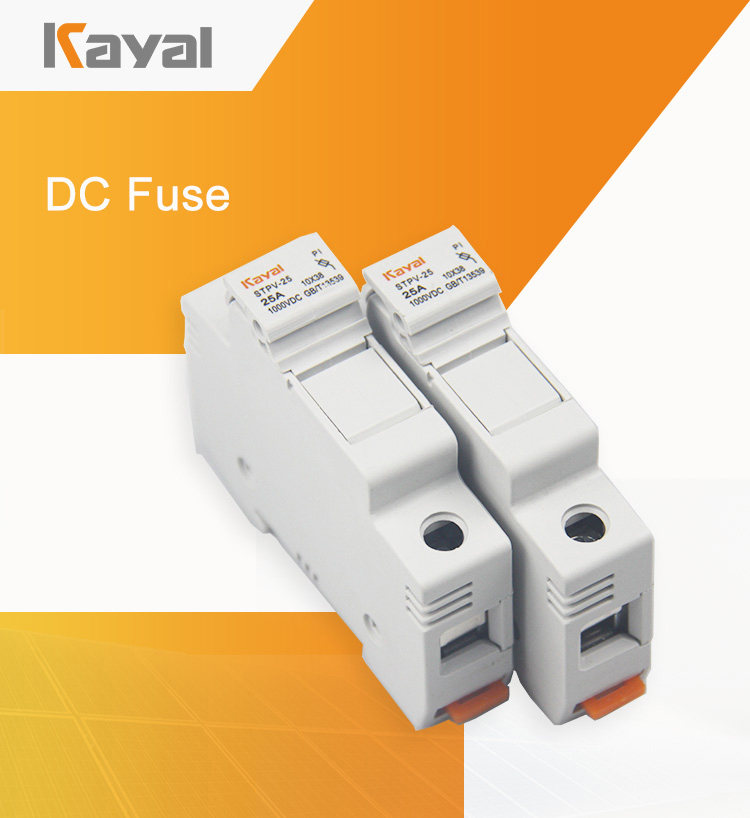

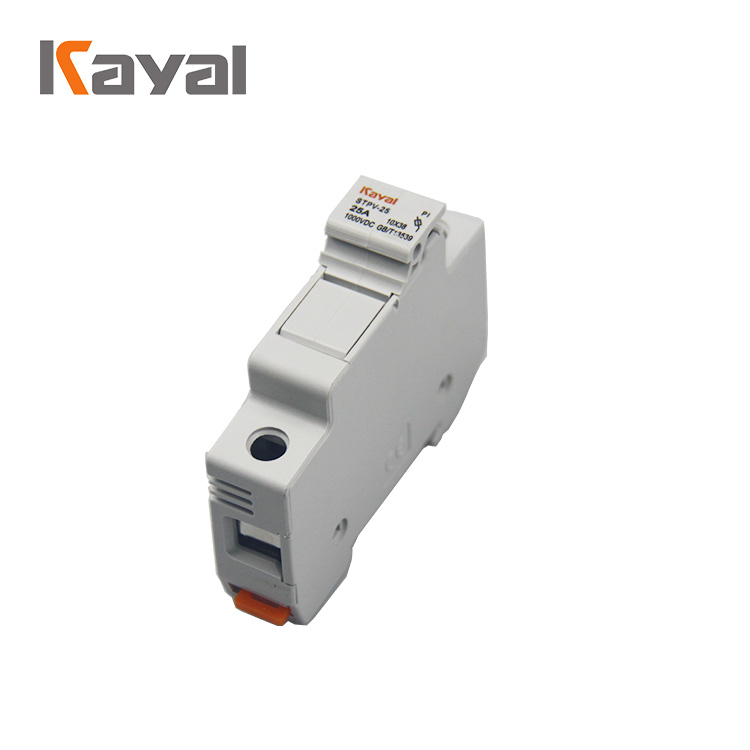

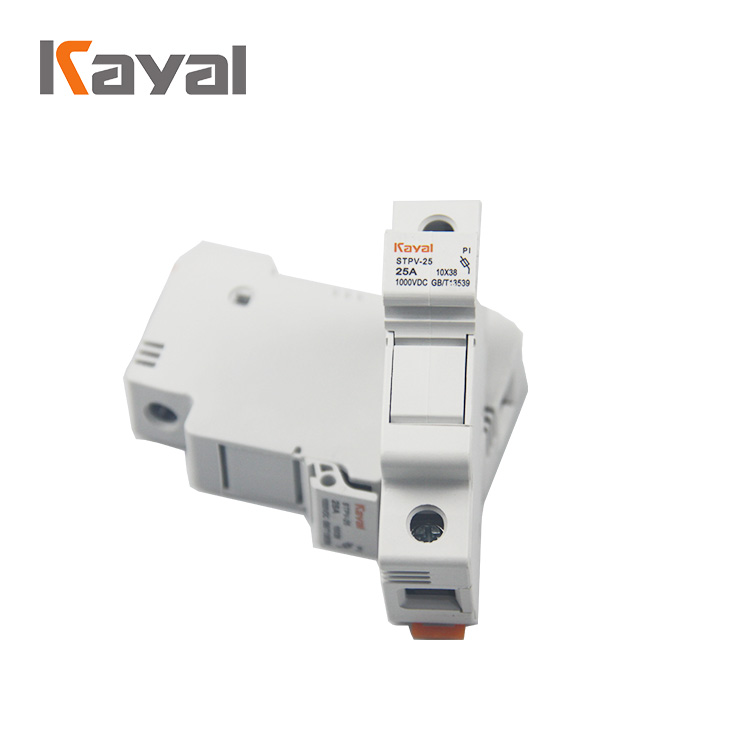

DC Fuse Holder 10x38mm 1000VDC
This DC fuse holder is designed to house 10x38mm fuses. It provides overcurrent and short circuit protection in photovoltaic arrays and other DC systems.
Technical Specifications
Overview
High-Performance PV Protection
This DC Fuse Holder is specifically engineered for photovoltaic array combiner boxes, providing essential protection against overloads and short circuits between PV modules and inverters. Designed to withstand the rigorous cycling conditions and environmental influences of solar operations, it ensures long-term system reliability. The unit features a high-quality flame-retardant resin shell and is optimized for 10x38mm fuse links.
Key Metrics
Performance Highlights
1,000 VDC
Max Voltage
20 kA
Breaking Capacity
25 A
Rated Current
Technical Specifications
Available Current Ratings
- 2
- 4
- 6
- 8
- 10
- 16
- 20
- 25
- 30
- Fuse Compatibility
- 10x38mm
- Time Constant (L/R)
- 2 ms
- Operating Temperature
- -25℃ to +70℃
Construction & Safety
Design Details

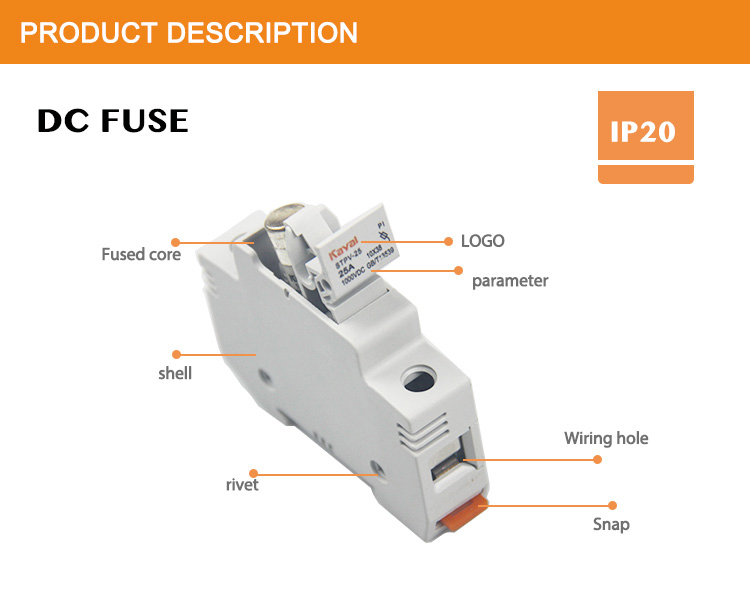

- Rivet construction for durability
- Integrated wiring hole
- Snap mechanism for secure mounting
- Smooth surface resin finish
- Housing Material
- PA66, UL94-V0 Rated Resin
- Safety Features
- Flame RetardantOver-current ProtectionInsulated ShellHigh Temperature ResistantIP20 Rated
Compliance
Standards
IEC60269IEC60947-3GB/T 13539
