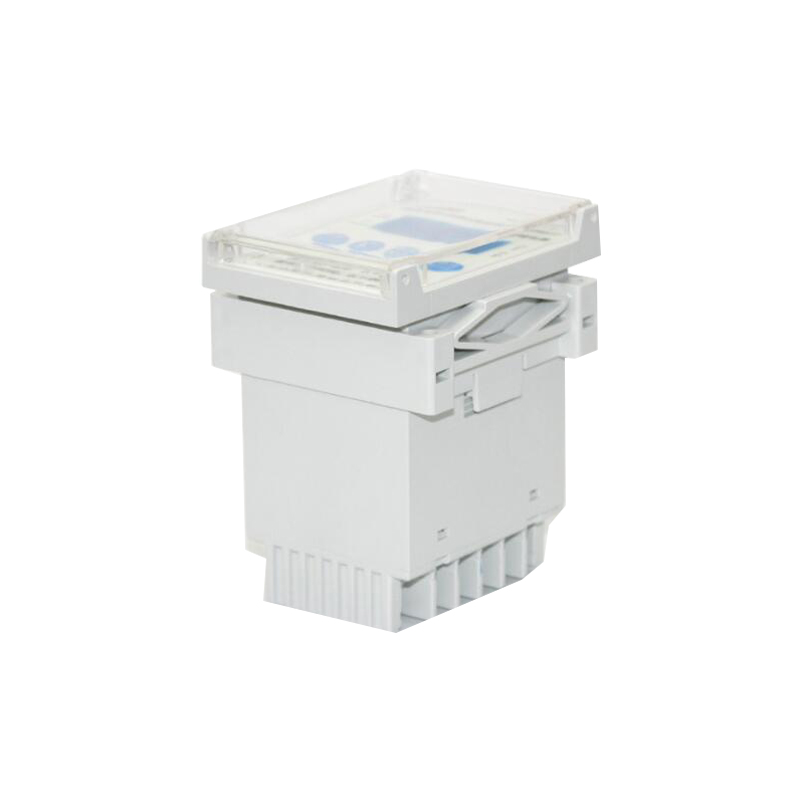

DC Earth Leakage Protection Relay
This DC earth leakage relay is designed for residual current protection. It ensures the safety of electrical systems by detecting and responding to DC leakage currents, preventing potential hazards and equipment damage.
Technical Specifications
Overview
Advanced Residual Current Monitoring
This DC Earth Leakage Protection Relay is a professional-grade monitoring solution designed to safeguard critical electrical infrastructure. By continuously monitoring for residual currents, it provides essential protection for personnel and equipment, automatically isolating circuits when thresholds are exceeded. It features high immunity to electrical interference and an intuitive high-definition display, making it ideal for industrial, commercial, and residential distribution systems.
Electrical Specifications
- Supply Voltage (Un)
- 24V AC115/230V AC400V AC12-125V DC10-60V DC
- Power Consumption
- 6 VA
- Contact Rating
- 5 A
Measurement & Performance
Operating Frequency
50 Hz
Frequency
60 Hz
Frequency
- Measuring Range
- 0.03mA to 9.99A or 0.1A to 50A
Environmental & Mechanical
Terminal Protection
IP20
- Operating Temperature
- -20°C to 60°C
- Mounting
- 35mm DIN Rail
- Weight
- 200 g
Features & Standards
Key Features
- Adjustable time delay and sensitivity
- Remote reset and test functions
- High-definition display
- Over-limit warning
- Sealable front cover
- Modular DIN rail design
- Compliance Standards
- IEC 41-1IEC 255VDE 0664EN 50081-1EN 50082-2
