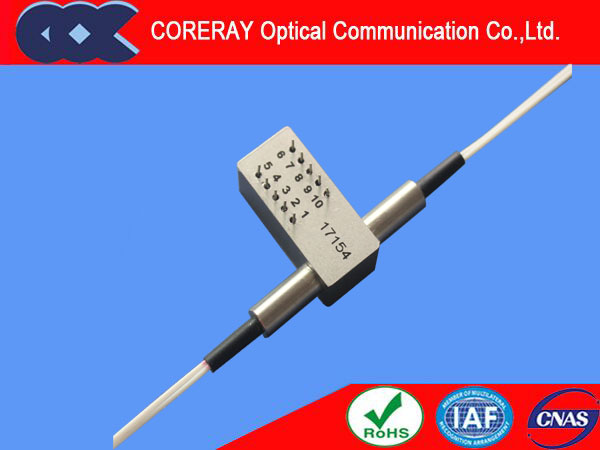

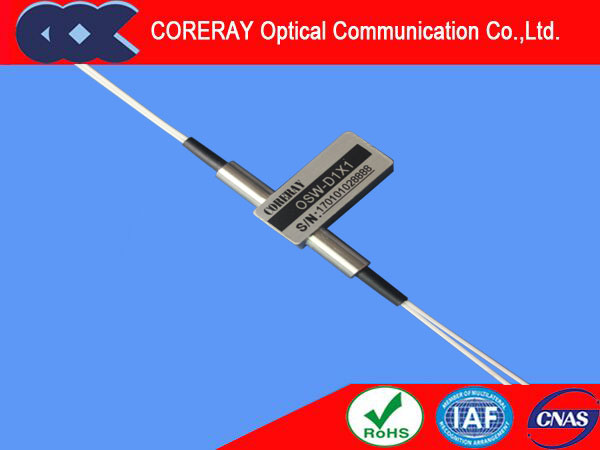

D1X1 Fiber Optic Switch
This optical switch utilizes a patented non-mechanical configuration, activated through an electrical control signal. Its latching operation ensures the selected optical path remains intact even after the drive signal is removed.
Technical Specifications
Overview
D1X1 Fiber Optic Switch
The D1X1 is a high-performance optical switch utilizing patented non-mechanical configuration technology, activated via an electrical control signal. Designed for reliability, its latching operation ensures the selected optical path is preserved even after the drive signal is removed. This compact device offers low insertion loss and high stability, making it an ideal component for optical network protection, monitoring, and routing applications.
Key Features
- Key Features
- Low Insertion LossWide Wavelength RangeLow CrosstalkHigh StabilityHigh ReliabilityEpoxy-free Optical PathLatching & Non-latching
Performance Metrics
Performance Metrics
0.6 dB
Typical Insertion Loss (650-1310nm)
0.5 dB
Typical Insertion Loss (1260-1670nm)
1 dB
Max Insertion Loss (650-1310nm)
0.8 dB
Max Insertion Loss (1260-1670nm)
Technical Specifications
Wavelength Specifications
| Parameter | Band 1 (650-1310nm) | Band 2 (1260-1670nm) |
|---|---|---|
| Testing Wavelength (nm) | 650/780/850/980/1064/1310 | 1310/1490/1550/1625/1650 |
Applications
Typical Applications
- Optical Signal Switching and Routing
- Optical Network Protection and Restoration
- Optical Network Monitoring
- Video Distribution
- Instrumentation Resource Sharing
- Military Communications
