Cylindrical Wedge Wire Screen
Cylindrical wedge wire screens are designed for efficient fluid flow and robust mechanical strength. The wedge wire construction provides precise slot openings for accurate filtration and minimizes clogging.
Technical Specifications
Product Overview
Precision Filtration Performance

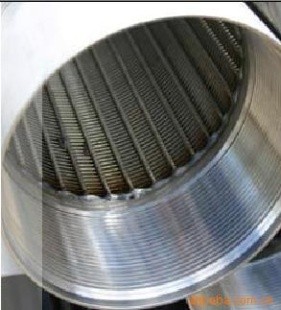

This cylindrical wedge wire screen is engineered with a profile wire wrapped around longitudinal support rods, forming a V-shaped slot that effectively resists clogging. Its continuous slot design significantly increases the open area compared to traditional screens, allowing for superior fluid flow and efficient well development. Designed for durability and performance, it provides reliable service across various groundwater and industrial filtration applications.
Technical Specifications
Slot Openings
- 0.15
- 0.25
- 0.5
- 0.75
- 1
- 1.5
- 2
- 3
- Available Diameters
- 1.5 inch2 inch3 inch4 inch6 inch8 inch10 inch12 inch14 inch16 inch
- Available Lengths
- 3 Meters6 Meters
Materials and Compatibility
Material Grades
Low Carbon Galvanized SteelStainless Steel SS-304
Supported Well Depths
300 ft
Max Depth Tier 1
600 ft
Max Depth Tier 2
900 ft
Max Depth Tier 3
1,500 ft
Max Depth Tier 4
- End Connections
- Plain beveled ends for butt welding or threaded
