Custom Heating Coil Assembly

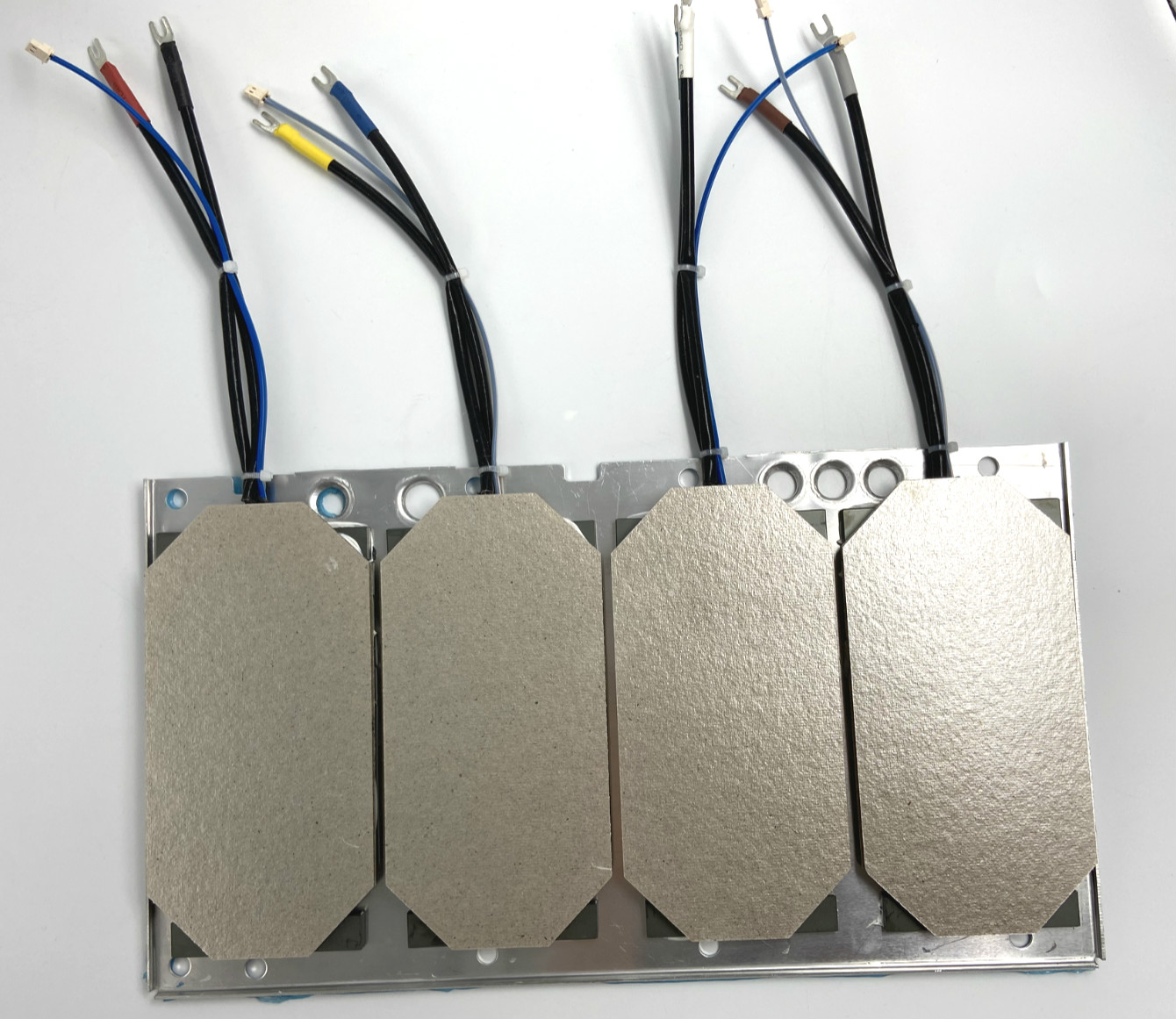

This is a custom-designed heating coil assembly for induction cookers and other heating appliances. It features multiple heating elements mounted on a metal frame, each with its own set of electrical leads.
Technical Specifications
Overview
Custom Engineered Heating Solutions
This custom heating coil assembly is designed for high-efficiency applications such as induction cookers and specialized industrial heating appliances. Featuring multiple heating elements mounted on a durable metal frame, the assembly offers tailored performance to meet specific thermal requirements. Each unit is constructed with integrated thermal insulation and pre-wired electrical leads for streamlined integration into your final product.
Technical Configuration
Heating Elements
- Element Construction
- Flat rectangular ceramic or composite material designed for efficient heat transfer
- Base Plate Material
- Aluminum with protective film
Design & Build
Thermal Protection
Frame Function
- Structural support for heating elements
- Potential heat sink functionality
- Metallic base plate for mounting
- Electrical Connections
- Insulated wires with crimped-on connectors
Applications
- Recommended Use
- Induction CookersHeating AppliancesCustom Industrial HeatingBespoke Thermal Systems
Customization
Tailored Specifications
The assembly is designed for customized applications, offering tailored heating performance based on specific client requirements. Wiring can be configured in parallel or series to match the intended power supply and control circuitry.
