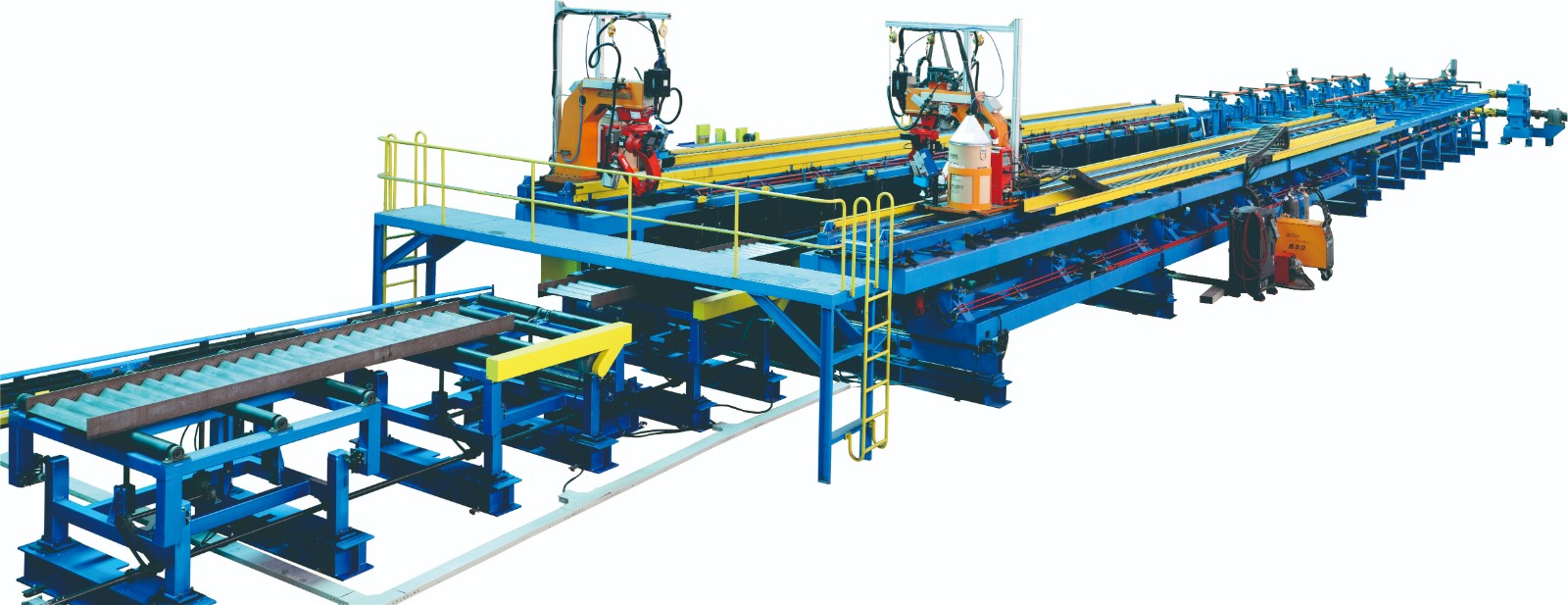

Corrugated Web H-Beam Automatic Welding Line
This automatic welding line is designed for producing corrugated web H-beams. It integrates slitting, web forming, feeding, robotic welding, and cross-section cutting for high-quality and efficient production.
Technical Specifications
Product Overview
Corrugated Web H-Beam Automatic Welding Line
This automated welding line is engineered for the efficient production of corrugated web H-beams, a modern construction material known for its high strength-to-weight ratio. By streamlining the manufacturing process through integrated material handling, precise positioning, and advanced welding technology, the system ensures consistent, high-quality output. It offers a cost-effective solution for structural steel fabrication, particularly for large-span projects and crane beams, while significantly reducing manual intervention.
Key Advantages
Performance Highlights
40 m
Max Span Capacity
1.5 m
Base Span Reference
- Material Efficiency
- Energy SavingSteel Saving (20-60%)High StrengthLightweight
Application Areas
Primary Applications
- Bridge Construction
- Column Fabrication
- Single-span Frame Construction
- Multi-span Frame Construction
- Crane Beams
System Features
Automation Features
Automated ControlsIntegrated Conveyor SystemPrecise Welding MechanismsAutomated Material Handling
