Technical Specifications
Product Overview

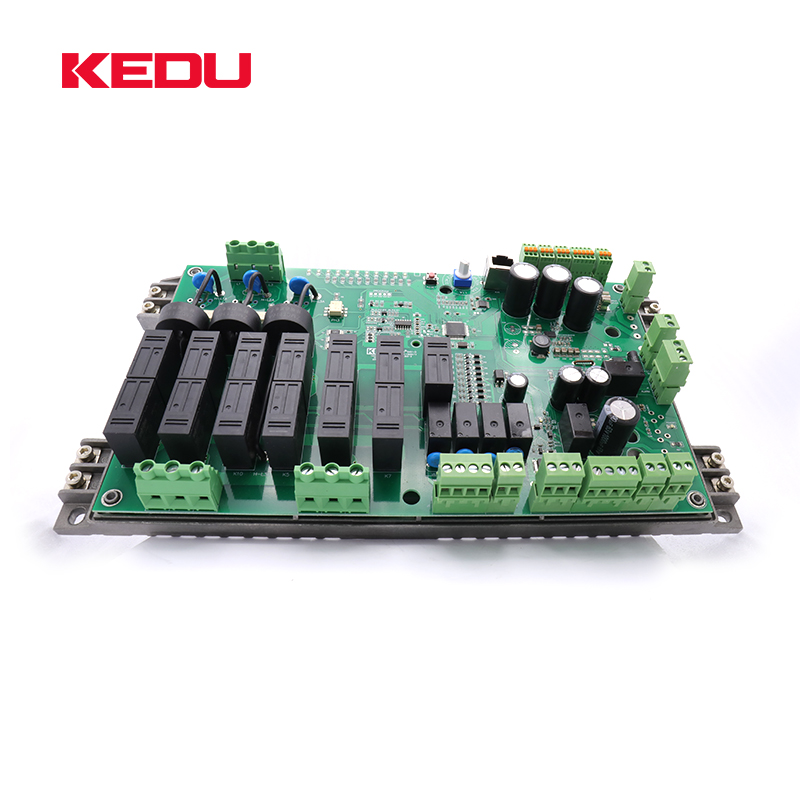

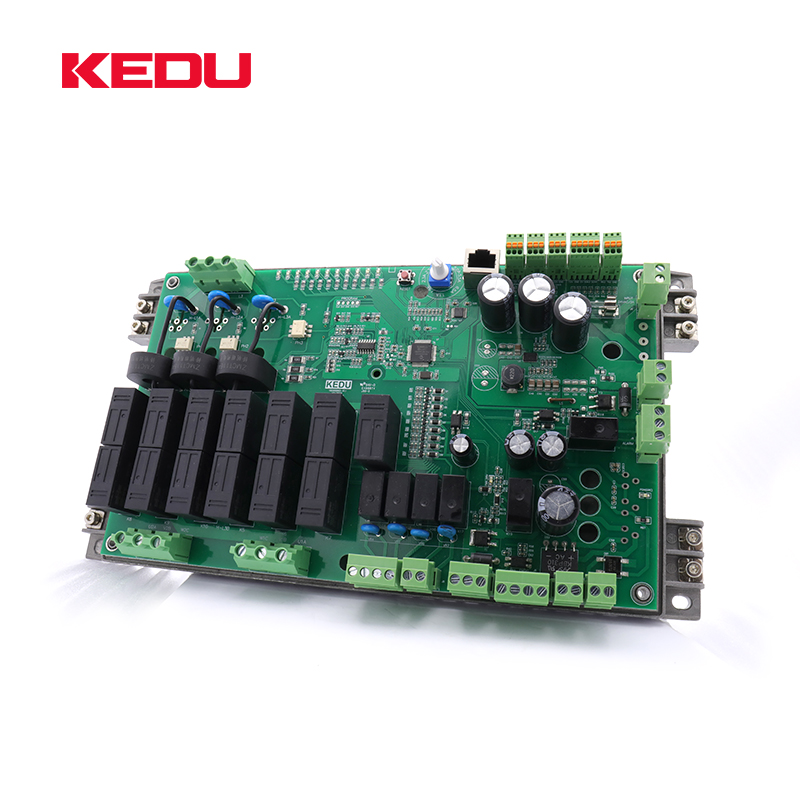

Industrial Control PCB
This high-performance printed circuit board is engineered specifically for control boxes in milling, drilling, and lathe machinery. It provides essential operational control, including high and low-speed adjustments, forward and backward rotation, and integrated overload protection. Built for industrial environments, this component ensures reliable automation and seamless machine integration.
Electrical Specifications
DC Lighting Power Output
5 V
Voltage
3 A
Current
- Rated Voltage
- 380 V
- Rated Frequency
- 50 Hz
- Output Power
- 2.2 kw
Protection & Safety
Over-current Protection Levels
- 1.1
- 1.9
- 2.3
- 2.75
- 3.75
- 5
- 5.5
- 6.5
Functional Features
- Control Functions
- High-speed controlLow-speed controlForward rotationBackward rotationOverload protection
